Anhui Filter Environmental Technology Co.,Ltd.
Product Details:
Payment & Shipping Terms:
|
| Product Name: | Fibreglass Filter Bag | Applicable Industrie: | Steel Plant,Cement Plant,Combustion,Coal Burning Boiler,Waster Incineration,Carbon Black Producing. |
|---|---|---|---|
| Usage: | Dust Filter | Type: | Pocket Filter, Medium Alkali Fibreglass Filter Bag |
| Weight: | 630GSM | Size: | Customized |
| Filter Bag Top: | Carbonsteel Snapband Or SS304 Snapband | ||
| High Light: | polypropylene filter bag,pp filter bag |
||

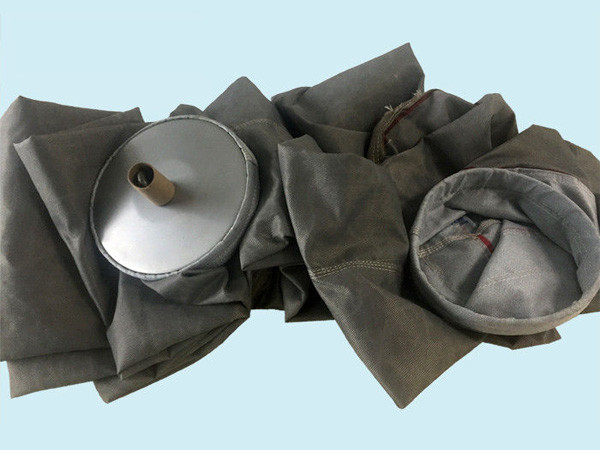

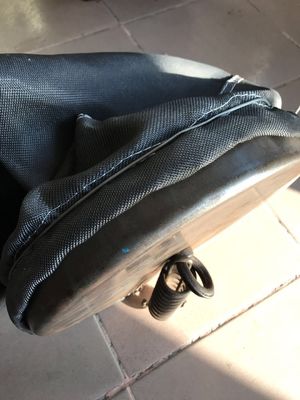

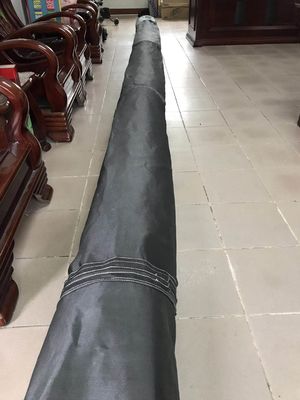

Fibreglass Filter Bag
Description:
Material: Medium Alkali Fibreglass filter cloth
Weight: 630GSM
Diameter: Φ 120,Φ 130, Φ 135,Φ 138, Φ 152, Φ 158 etc. We make it as your requirements.
Length: 1000mm~120000mm. We make is as your requirements.
Fibreglass needled felt filter bag is a kind of reasonable structure.It has excellent performance of high temperature resistant filter materials.Glass fiber fabric has the advantage of high temperature resistant, corrosion resistance, dimension stability.It is a kind of high speed, efficient high temperature filtration material.Fibreglass needle felt filter bag is suitable for bag dust collector.
Specification:
| Fibre | Medium Alkali Fibreglass |
| Scrim | Medium Alkali Fibreglass |
| Weight(G/M2) | 630 |
| Thickness (mm) | 0.6 |
| Organization Structure | Plain Weave |
| Width (mm) | ≤ 2.2 |
| Length | 50m/roll |
| Finish treatment | Graphite Treatment. |
| Air permeability (dm3/m2/s): | 220~310 |
| Tensile strength (N/5× 20cm) | Warp:>1800 Weft:>2150 |
| Tensile elongation (%): | Warp:<5 Weft:<5 |
| Temperature (ºC): | Continue: 260 Instant: 280 |
| Application | Mainly used in Steel Plant,Cement Plant,Combustion,Coal burning boiler,Waster incineration,Carbon black producing. |
Feature:
1.High efficient filtration level.
2.Depth type filtration.
3.Wide range of chemically compatible media.
4.High temperature resistance.
5.High flow efficiency.
6.High air to cloth ratio.
7.Various coatings are available.
Application:
1. Asphalt mixing plant.
2. Biomass power stations.
3. Chemical and pharmaceutical industry.
4. High temperature dedusting.
5. Coal-fired power stations.
6. Steel Plant.
7.Non-ferrous metal and steel production.
8.Cement,gypsum and lime industry.
9.Thermal waste treatment.
10.Mining Plant.
Making method:
Our bags are sewn with 3 - needle chain stitch to ensure seam integrity. Top constructions consist of snap band, flange top, ring top, soft cuffs,antiskid rop or raw edge. Bottom removal bags are constructed with a raw top or soft cuff. Top and bottom removal bag bottoms have disc bottoms that are sewn using an overlock (surge) stitch or lock stitch.Usually it have 7 supporting rings.
Packaging & Delivery:
Competitive Advantages:
1. 100% custom pass guaranteed.
2. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
3. Flexible and Untraceable payment terms.
4. Good after-sale service.
5. We offer high quality products at competitive price in quick delivery.
Shipping Details:
|
SHIPPING (Normally arrive port time in working days) |
||||
| Destination | Express/Courier | SHIP BY SEA | SHIP BY AIR | SHIP BY EMS |
| DHL/FEDEX/UPS/TNT | ||||
| North America | 3~7 days | 15~24 days | 5~7 days | 10~12 days |
| South America | 3~7 days | 15~25 days | 5~7 days | 10~12 days |
| European Countries | 3~7 days | 20~30 days | 5~7 days | 10~12 days |
| Africa Countries | 3~7 days | 40~50 days | 5~7 days | 10~12 days |
| The Middle East | 3~7 days | 15~25 days | 5~7 days | 10~12 days |
| Australia | 3~7 days | 10~15 days | 5~7 days | 10~12 days |
