|Product Name:||Polyester Filter Bag||Applicable Industrie:||Used In Food And Beverage Industry,pharmaceutical Industry,non-ferrous Metallurgy,chemcial Plant,building Section And Mining Industry Etc.|
|Usage:||Dust Filter||Type:||Pocket Filter,Polyester Needle Felt Filter|
pp filter bag,
high efficiency filter bags

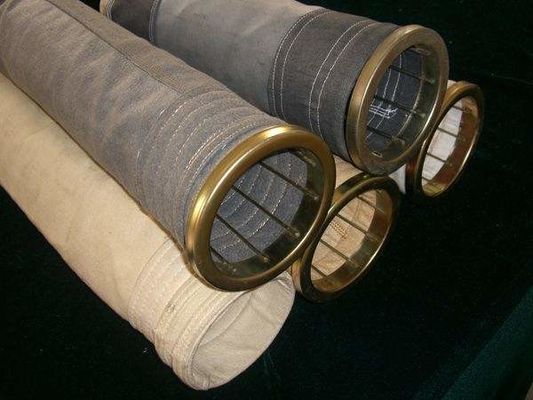

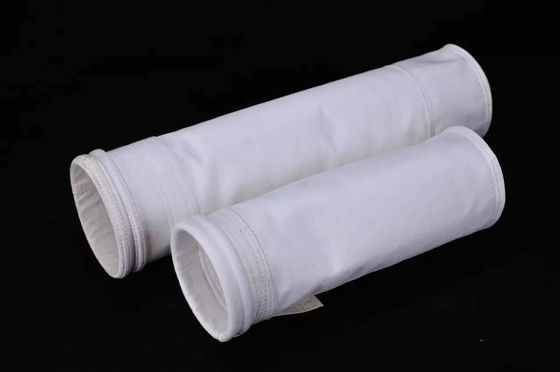

Polyester Filter Bag
Material: Polyester Needle Felt
Diameter: Φ 120,Φ 130, Φ 135,Φ 138, Φ 152, Φ 158 etc. We make it as your requirements.
Length: 1000mm~8000mm. We make is as your requirements.
|Width (mm)||≤ 2.2|
|Finish treatment||Singeing, Calendering, Heat-set|
|Air permeability (L/m2/S):||120|
|Tensile strength (N/5× 20cm)||Warp:>1100 Weft:>1350|
|Tensile elongation (%):||Warp:<25 Weft:<45|
|Temperature (ºC):||Continue: 120 Instant: 150|
|Application||Mainly used in food and beverage industry,pharmaceutical industry,non-ferrous metallurgy,chemcial plant,building section and mining industry etc.|
1. High Voidage.
2. Good air permeability.
3. High dust collecting efficiency.
4. High tensile strength.
5. Strong elongation.
6. Long service life.
7. Moderate temperature rating.
Surface treatment :
1. Water and oil repellent treatment: A substantial increase in performance of water and oil repellent.
2. Acrylic coating: A substantial increase in Abrasion resistance property.
3. Carbon coating: Anti-spark.
4. PTFE film: Improve filtration precision: ≤5gsm/Nm3, but lower the filtration efficiency; and a substantial increase in acid-base resistance property
5. PTFE paint-coating: Improve filtration precision: ≤10gsm/Nm3, does not lower the filtration efficiency; and a substantial increase in acid-base resistance property
6. PTFE dipping: Improve filtration precision: ≤25gsm/Nm3, does not lower the filtration efficiency; and a small increase in acid-base resistance property.
1. Food and Beverage Industry.
2. Pharmaceutical Industry.
3. Non-ferrous Metallurgy.
4. Chemcial Plant.
5. Building Section and Mining Industry.
6. Cement Plant.
7. Power Plant.
8. Steel Plant.
A. Quickly reply.
B. Quick delivery& Competitive price.
C. Professional technical and commercial service provided by experienced staff.
D. Custom-made design is available.
