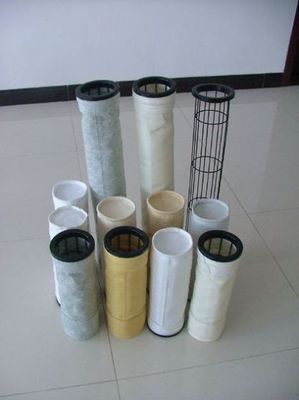

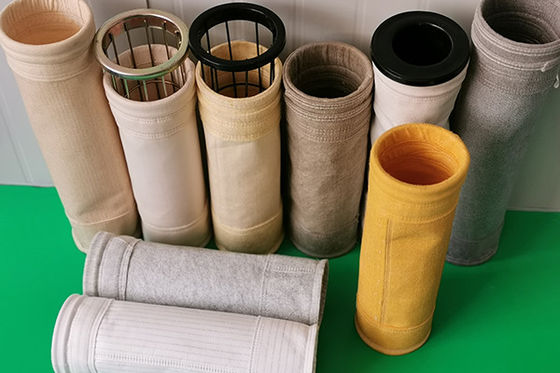

Dust Collector Filter Bag
Description:
Material: All Needle Felt
Weight: 450GSM~550GSM
Diameter: Φ 130, Φ 138, Φ 152, Φ 158 etc. We make it as your requirements.
Length: 1000mm~8000mm. We make is as your requirements.
Making method: Our bags are sewn with 3 - needle chain stitch to ensure seam integrity. Top constructions consist of snap band, flange top, ring top, soft cuffs or raw edge. Bottom removal bags are constructed with a raw top or soft cuff. Top and bottom removal bag bottoms have disc bottoms that are sewn using an overlock (surge) stitch or lock stitch. A wear strip or custom skirts is attached to the bottom portion of the bag to prevent premature wear from bag-to-bag and bag-to-cage abrasion.
Technical Data:
Raw materials of the filter material |
Temperature | Property of the filter material & the suitable industrial conditions |
Application field and industrial condition |
Polypropylene (PP) | 900C | Suitable for the condition with continuous working temperature less than 900C & short time temperature less than 1000C. The oxidation resistance of the material is ordinary. Suitable PH range is 1to 14. The resistance of hydrolysis of the material is good. | Suitable for the dust collection of sugar production, chemical fertilizer plants, electroplating, pesticide plant, etc |
polyacrylonitrile(AC) | 1100C |
Suitable for the condition with continuous working temperature less than 1100C & short time temperature less than 1150C. The oxidation resistance of the material is ordinary. Suitable PH range is 6 to 13. Relative humidity<5% |
Suitable for the dust collection of detergent production, pulverized coal plant, etc |
homopolyacrylonitrile(DT) | 1250C |
Suitable for the condition with continuous working temperature less than 1250C & short time temperature less than 1400C. The oxidation resistance of the material is ordinary. Suitable PH range is 3 to 11 Relative humidity<30% |
Suitable for the dust collection of detergent production, garbage incineration, asphalt, spray dryer, coal mill, power plant, etc. |
Polyester (PE) | 1500C |
Suitable for the condition with continuous working temperature less than 1300C & short time temperature less than 1500C. The oxidation resistance of the material is good. The acid-base resistance is ordinary. Suitable PH range is 4 to 12. Relative humidity<4% The expected lifetime depends on the moisture content of the flue gas when the working temperature is high. |
Suitable for the dust collection of mine, lime cement production, raw cement, grinding machine, packaging and other process, continuous casting and sintering, ironmaking processes of Iron and steel industry , alumina conveying, electrolytic aluminum production, non-ferrous metal smelting plant, wood processing, food processing, pharmaceutical and other industries |
polyphenylene sulfide (PPS) |
1600C |
Suitable for the condition with continuous working temperature less than 1600C & short time temperature less than 2000C. The oxidation resistance of the material is not good. The resistance to acid-base is good. Suitable PH range is 1 to 14 Relative humidity>30% |
Suitable for the dust collection of flue gas of coal-fired boilers, garbage incineration, metal smelting, chemical industry , etc. |
polyamide (NO) | 2000C |
Suitable for the condition with continuous working temperature less than 2040C & short time temperature less than 2400C. The oxidation resistance of the material is ordinary. PH range is 4 to 12. Relative humidity<10% The performance of the material depends on the moisture content of the flue gas when the working temperature is high. |
Suitable for the dust collection of flue gas of asphalt-mixing, non-ferrous metal smelting, ceramics, glass, kiln head of cement industry (grate cooler), steel blast, etc. |
polyimide(PI/P84) | 2200C |
Suitable for the condition with continuous working temperature less than 2200C & short time temperature less than 2600C. The oxidation resistance of the material is ordinary. PH range is 3 to 13. Relative humidity<25% |
Suitable for the dust collection of the corrosive flue gas of Chemical plant, metal melting, garbage incineration, cement preheater and coal boiler, etc. |
polyfluortetraethylene(PTFE) | 2500C |
Suitable for the condition with continuous working temperature less than 2500C & short time temperature less than 2800C. The material have good resistance for all the chemical corrosion PH range is 1 to 14 Relative humidity>30% The material has good ash removal performance. |
Suitable for the dust collection of the highly temperature and high corrosive flue gas of Chemical industry, coal boiler, garbage incineration, non-ferrous metal smelting plant, etc. |
Fiberglass (FG) | 2600C |
Suitable for the condition with continuous working temperature less than 2600C & short time temperature less than 2800C. The oxidation resistance of the material is ordinary. Suitable PH range is 4 to 9 Relative humidity55% |
Suitable for the dust collection of the highly temperature flue gas of, Cement production, coal boiler, garbage incineration, steelmaking furnace, blast furnace gas production, the ferroalloy furnace, etc |
Production Feature:
1.High efficient filtration level.
2.Depth type filtration.
3.Wide range of chemically compatible media.
4.High temperature resistance.
5.High flow efficiency.
6.High air to cloth ratio.
7.Various coatings are available.
Application:
1. Asphalt mixing plant.
2. Biomass power stations.
3. Chemical and pharmaceutical industry.
4. High temperature dedusting.
5. Coal-fired power stations.
6. Food industry.
7.Non-ferrous metal and steel production.
8.Cement,gypsum and lime industry.
9.Thermal waste treatment.
10.Mining Plant.
Packaging & Delivery:
Competitive Advantages:
1. 100% custom pass guaranteed.
2. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
3. Flexible and Untraceable payment terms.
4. Good after-sale service.
5. We offer high quality products at competitive price in quick delivery.
Shipping Details:
SHIPPING (Normally arrive port time in working days) |
||||
Destination | Express/Courier | SHIP BY SEA | SHIP BY AIR | SHIP BY EMS |
DHL/FEDEX/UPS/TNT | ||||
North America | 3~7 days | 15~24 days | 5~7 days | 10~12 days |
South America | 3~7 days | 15~25 days | 5~7 days | 10~12 days |
European Countries | 3~7 days | 20~30 days | 5~7 days | 10~12 days |
Africa Countries | 3~7 days | 40~50 days | 5~7 days | 10~12 days |
The Middle East | 3~7 days | 15~25 days | 5~7 days | 10~12 days |
Australia | 3~7 days | 10~15 days | 5~7 days | 10~12 days |
Contact Us at Any Time
