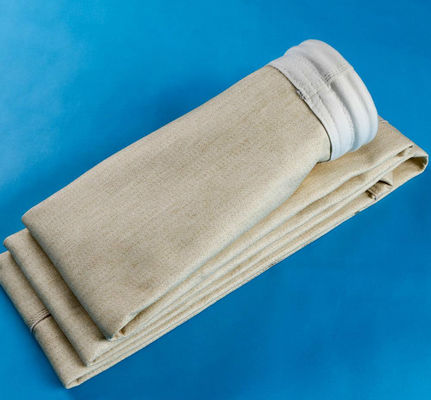

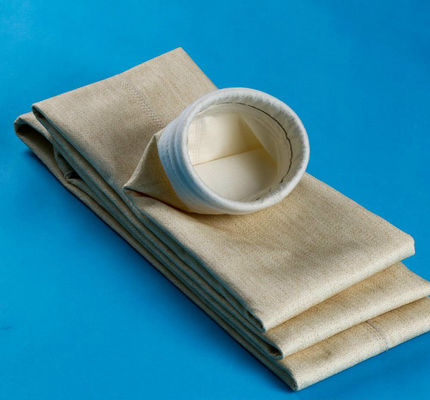

High Efficiency Nomex With PTFE Membrane Filter Bag 450GSM~550GSM
  • High Efficiency Nomex With PTFE Membrane Filter Bag 450GSM~550GSM
  • High Efficiency Nomex With PTFE Membrane Filter Bag 450GSM~550GSM
  • High Efficiency Nomex With PTFE Membrane Filter Bag 450GSM~550GSM
  • High Efficiency Nomex With PTFE Membrane Filter Bag 450GSM~550GSM

High Efficiency Nomex With PTFE Membrane Filter Bag 450GSM~550GSM

Place of Origin jiangsu
Brand Name Filter
Model Number Aramid filter bag
Product Details
Product Name:
Nomex(Aramid) With PTFE Membrane Filter Bag
Applicable Industrie:
Building Material Shops, Manufacturing Plant, Printing Shops, Costruction Works
Usage:
Industry Dust Collector
Type:
Pocket Filter, Aramid Filter
Weight:
450GSM~550GSM
Size:
Customized
Usage:
Dust Filter,Air Filter,dust Collector
Material Of Bag:
Aramid,Non-woven
Application:
Industry Dust Collector,cement Plant,Dust Collector Bag House,asphalt Mix,Industrial Dust Removal
Applicable Industries:
Manufacturing Plant,Energy & Mining,Construction Works ,Food & Beverage Factory
Thickness:
≥2.0 Mm
Material:
Aramid,aramid Nomex Metamax
Temperature:
204-240℃
Shape:
Round,long Tube With Snap Band,Customers' Request,bag Filter
Package:
Polybags/cartons/customized
Feature:
Dust Collection,High Filtration Accuracy,Heat Resistant,High Quality
Sample:
Available And Free
Oem:
Welcomed
Keyword:
Aramid Filter Bag,nomex Filter Bag For Steel Plant
Highlight:

nomex filter bag

,

cement dust collector bags

Payment & Shipping Terms
Minimum Order Quantity
50pcs
Price
Negotiable
Packaging Details
Carton or Woven Bag
Delivery Time
3~15 days
Payment Terms
L/C, T/T, D/A, D/P, Western Union
Supply Ability
Supply 10000pcs filter bags per month
Product Description

Nomex(Aramid) with PTFE membrane Filter Bag



Description:



Material:Nomex(Aramid)Needle Felt
Weight: 450GSM~550GSM
Diameter: Φ 120,Φ 130, Φ 135,Φ 138, Φ 152, Φ 158 etc. We make it as your requirements.
Length: 1000mm~8000mm. We make is as your requirements.



Technical Data:



Fibre Aramid
Scrim Aramid
Weight(G/M2) 450~550
Air Permeability(L/dm3.min) 20~50
Thickness (mm) 2.2
Width (mm) ≤ 2.2
Length 50m/roll
Finish treatment Singeing, Calendering, Heat-set,with PTFE membrane Treatment.
Air permeability (L/m2/s): 120~200
Tensile strength (N/5× 20cm) Warp:>800 Weft:>1000
Tensile elongation (%): Warp:<30 Weft:<50
Temperature (ºC): Continue: 204 Instant: 240
Anti-acid Excellent
Anti-alkali Excellent
Anti-abrasion Excellent





Production Feature:



1.High efficient filtration level.

2.Depth type filtration.

3.Wide range of chemically compatible media.

4.High temperature resistance.

5.High flow efficiency.

6.High air to cloth ratio.

7.Various coatings are available.



Application:



1. Asphalt mixing plant.

2. Biomass power stations.

3. Chemical and pharmaceutical industry.

4. High temperature dedusting.

5. Coal-fired power stations.

6. Food industry.

7.Non-ferrous metal and steel production.

8.Cement,gypsum and lime industry.

9.Thermal waste treatment.

10.Mining Plant.



Making method:

Our bags are sewn with 3 - needle chain stitch to ensure seam integrity. Top constructions consist of snap band, flange top, ring top, soft cuffs or raw edge. Bottom removal bags are constructed with a raw top or soft cuff. Top and bottom removal bag bottoms have disc bottoms that are sewn using an overlock (surge) stitch or lock stitch. A wear strip or custom skirts is attached to the bottom portion of the bag to prevent premature wear from bag-to-bag and bag-to-cage abrasion.



Packaging & Delivery:



High Efficiency Nomex With PTFE Membrane Filter Bag 450GSM~550GSM 0



Competitive Advantages:



1. 100% custom pass guaranteed.
2. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
3. Flexible and Untraceable payment terms.
4. Good after-sale service.

5. We offer high quality products at competitive price in quick delivery.



Shipping Details:



SHIPPING

(Normally arrive port time in working days)

Destination Express/Courier SHIP BY SEA SHIP BY AIR SHIP BY EMS
DHL/FEDEX/UPS/TNT
North America 3~7 days 15~24 days 5~7 days 10~12 days
South America 3~7 days 15~25 days 5~7 days 10~12 days
European Countries 3~7 days 20~30 days 5~7 days 10~12 days
Africa Countries 3~7 days 40~50 days 5~7 days 10~12 days
The Middle East 3~7 days 15~25 days 5~7 days 10~12 days
Australia 3~7 days 10~15 days 5~7 days 10~12 days
