Aramid Filter Bag
>
|
|
| Place of Origin | jiangsu |
| Brand Name | Filter |
| Model Number | Aramid filter bag |

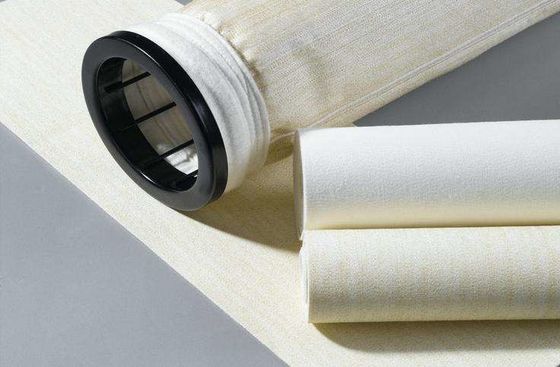

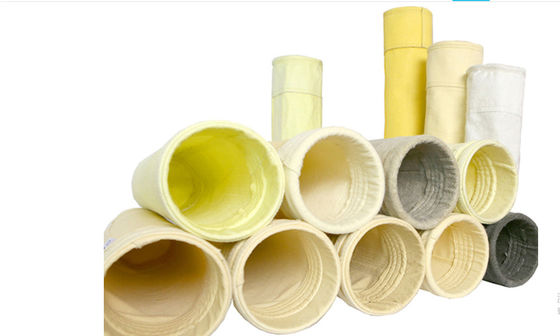

Nomex(Aramid) Filter Bag
Description:
Material:Nomex(Aramid)Needle Felt
Weight: 450GSM~550GSM
Diameter: Φ 120,Φ 130, Φ 135,Φ 138, Φ 152, Φ 158 etc. We make it as your requirements.
Length: 1000mm~8000mm. We make is as your requirements.
Technical Data:
| Fibre | Aramid |
| Scrim | Aramid |
| Weight(G/M2) | 450~550 |
| Thickness (mm) | 2.2 |
| Width (mm) | ≤ 2.2 |
| Length | 50m/roll |
| Finish treatment | Singeing, Calendering, Heat-set |
| Air permeability (L/m2/s): | 120~200 |
| Tensile strength (N/5× 20cm) | Warp:>1000 Weft:>1200 |
| Tensile elongation (%): | Warp:<50 Weft:<55 |
| Temperature (ºC): | Continue: 204 Instant: 240 |
| Anti-acid | Excellent |
| Anti-alkali | Excellent |
| Anti-abrasion | Excellent |
Production Feature:
1.High efficient filtration level.
2.Depth type filtration.
3.Wide range of chemically compatible media.
4.High temperature resistance.
5.High flow efficiency.
6.High air to cloth ratio.
7.Various coatings are available.
Application:
1. Food and Beverage Industry.
2. Pharmaceutical Industry.
3. Non-ferrous Metallurgy.
4. Chemcial Plant.
5. Building Section and Mining Industry.
6. Cement Plant.
7. Power Plant.
8. Steel Plant.
Making method:
Our bags are sewn with 3 - needle chain stitch to ensure seam integrity. Top constructions consist of snap band, flange top, ring top, soft cuffs or raw edge. Bottom removal bags are constructed with a raw top or soft cuff. Top and bottom removal bag bottoms have disc bottoms that are sewn using an overlock (surge) stitch or lock stitch. A wear strip or custom skirts is attached to the bottom portion of the bag to prevent premature wear from bag-to-bag and bag-to-cage abrasion.
Packaging & Delivery:
Competitive Advantages:
1. 100% custom pass guaranteed.
2. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
3. Flexible and Untraceable payment terms.
4. Good after-sale service.
5. We offer high quality products at competitive price in quick delivery.
Shipping Details:
|
SHIPPING (Normally arrive port time in working days) |
||||
| Destination | Express/Courier | SHIP BY SEA | SHIP BY AIR | SHIP BY EMS |
| DHL/FEDEX/UPS/TNT | ||||
| North America | 3~7 days | 15~24 days | 5~7 days | 10~12 days |
| South America | 3~7 days | 15~25 days | 5~7 days | 10~12 days |
| European Countries | 3~7 days | 20~30 days | 5~7 days | 10~12 days |
| Africa Countries | 3~7 days | 40~50 days | 5~7 days | 10~12 days |
| The Middle East | 3~7 days | 15~25 days | 5~7 days | 10~12 days |
| Australia | 3~7 days | 10~15 days | 5~7 days | 10~12 days |
