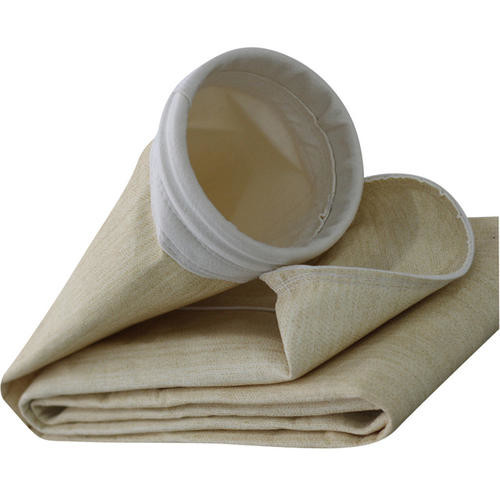

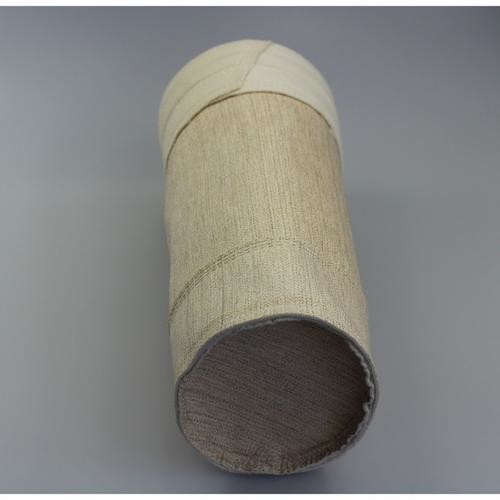

Nomex(Aramid) Filter Bag
Description:
Material:Nomex(Aramid)Needle Felt
Weight: 450GSM~550GSM
Diameter: Φ 120,Φ 130, Φ 135,Φ 138, Φ 152, Φ 158 etc. We make it as your requirements.
Length: 1000mm~8000mm. We make is as your requirements.
Technical Parameters:
| Fibre |
Aramid |
| Scrim |
Aramid |
| Weight(G/M2) |
450~550 |
| Thickness (mm) |
2.2 |
| Width (mm) |
≤ 2.2 |
| Length |
50m/roll |
| Finish treatment |
Singeing, Calendering, Heat-set |
| Air permeability (L/m2/s): |
120~200 |
| Tensile strength (N/5× 20cm) |
Warp:>1000 Weft:>1200 |
| Tensile elongation (%): |
Warp:<50 Weft:<55 |
| Temperature (ºC): |
Continue: 204 Instant: 240 |
| Anti-acid |
Excellent |
| Anti-alkali |
Excellent |
| Anti-abrasion |
Excellent |
Making method:

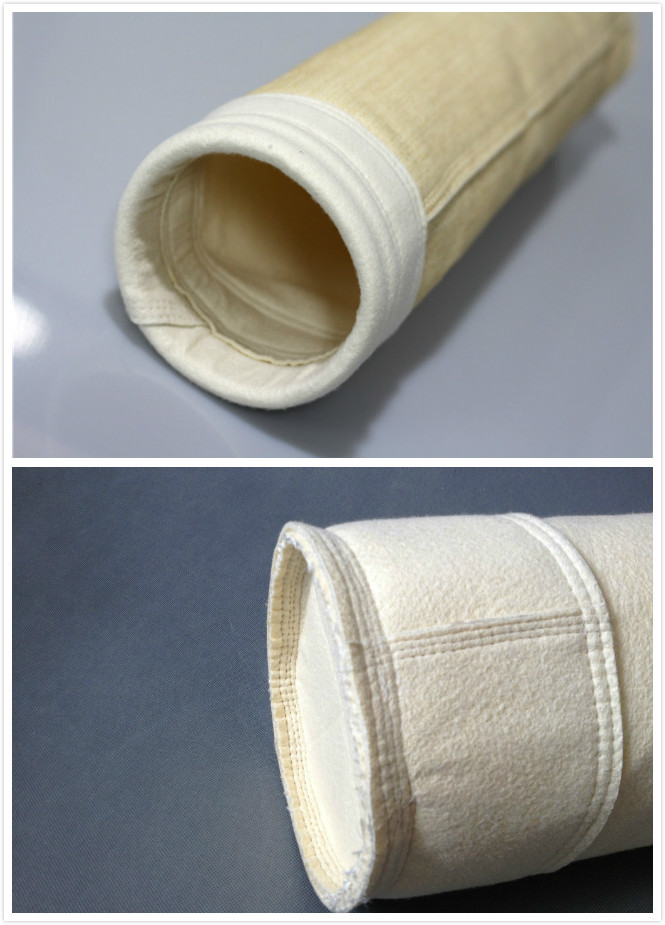

Our bags are sewn with 3 - needle chain stitch to ensure seam integrity. Top constructions consist of snap band, flange top, ring top, soft cuffs or raw edge. Bottom removal bags are constructed with a raw top or soft cuff. Top and bottom removal bag bottoms have disc bottoms that are sewn using an overlock (surge) stitch or lock stitch. A wear strip or custom skirts is attached to the bottom portion of the bag to prevent premature wear from bag-to-bag and bag-to-cage abrasion.
Production Features:
1.High efficient filtration level.
2.Depth type filtration.
3.Wide range of chemically compatible media.
4.High temperature resistance.
5.High flow efficiency.
6.High air to cloth ratio.
7.Various coatings are available.
Application:
1. Asphalt mixing plant.
2. Biomass power stations.
3. Chemical and pharmaceutical industry.
4. High temperature dedusting.
5. Coal-fired power stations.
6. Food industry.
7.Non-ferrous metal and steel production.
8.Cement,gypsum and lime industry.
9.Thermal waste treatment.
