Dust Collector Filter Bags
>
|
|
| Place of Origin | jiangsu |
| Brand Name | Filter |
| Model Number | filter bag |

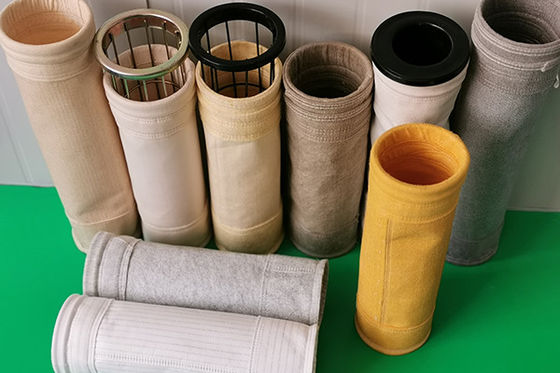

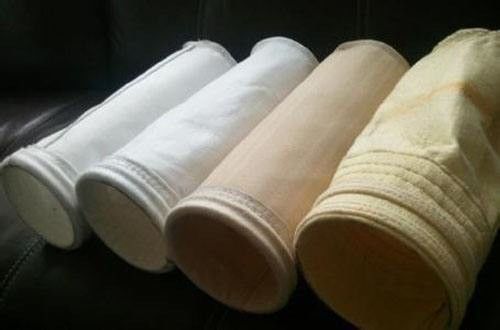

Polypropylene Filter Bag
Description:
Material:Polypropylene(PP) Needle Felt
Weight: 450GSM~550GSM
Diameter: Φ 120,Φ 130, Φ 135,Φ 138, Φ 152, Φ 158 etc. We make it as your requirements.
Length: 1000mm~8000mm. We make is as your requirements.
Technical Parameters:
| Fibre | Polypropylene |
| Scrim | Polypropylene |
| Weight(G/M2) | 450~550 |
| Thickness (mm) | 2.2 |
| Width (mm) | ≤ 2.2 |
| Length | 50m/roll |
| Finish treatment | Singeing, Calendering, Heat-set |
| Air permeability (m3/m2/min): | 10.8 |
| Tensile strength (N/5× 20cm) | Warp:>1150 Weft:>1400 |
| Tensile elongation (%): | Warp:<35 Weft:<55 |
| Temperature (ºC): | Continue: 90 Instant: 110 |
| Anti-acid | Excellent |
| Anti-alkali | Excellent |
| Anti-abrasion | Excellent |
| Application | Polypropylene is a relatively low temperature fiber with quite excellent chemical resistance which finds use in specialist applications such as the chemical industry. |
Applications:
Galvanic industry and Chemical industryPrefiltering solvents and acids
Prefilter to extend final filter lifeFinal filter for noncritical filtrations
Liquid-solid sepration with strong acid and alkali conditions filter press
Air filtration under 90℃
Making method:
Our bags are sewn with 3 - needle chain stitch to ensure seam integrity. Top constructions consist of snap band, flange top, ring top, soft cuffs or raw edge. Bottom removal bags are constructed with a raw top or soft cuff. Top and bottom removal bag bottoms have disc bottoms that are sewn using an overlock (surge) stitch or lock stitch. A wear strip or custom skirts is attached to the bottom portion of the bag to prevent premature wear from bag-to-bag and bag-to-cage abrasion.
Packaging & Delivery:
Competitive Advantages:
1. 100% custom pass guaranteed.
2. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
3. Flexible and Untraceable payment terms.
4. Good after-sale service.
5. We offer high quality products at competitive price in quick delivery.
