Place of Origin | jiangsu |
Brand Name | Filter |
Model Number | filter bag |

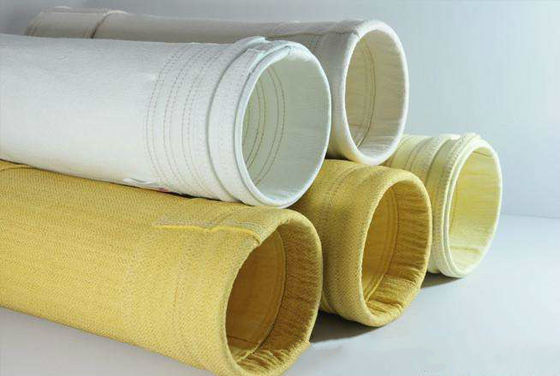

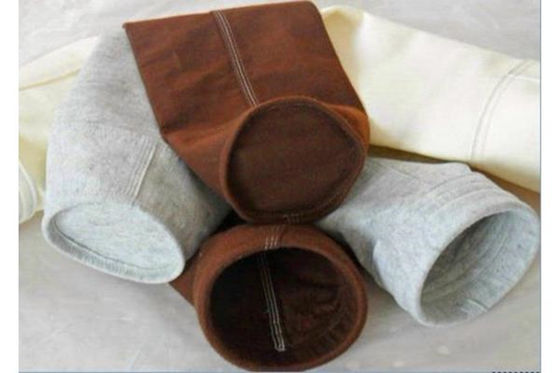

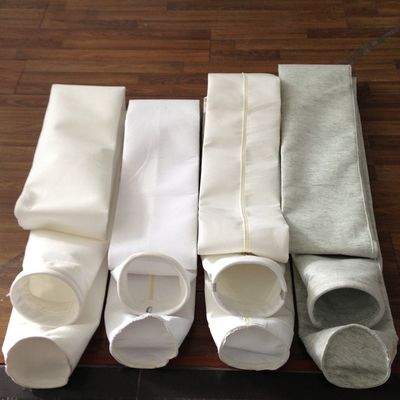

High Temperature PTFEFilter Bag
Description:
Material:PTFE filter cloth
Weight: 750GSM
Diameter: Φ 120,Φ 130, Φ 135,Φ 138, Φ 152, Φ 158 etc. We make it as your requirements.
Length: 1000mm~8000mm. We make is as your requirements.
Technical Data:
Fibre | PTFE |
Scrim | PTFE |
Weight(G/M2) | 750 |
Thickness (mm) | 1.27 |
Width (mm) | ≤ 2.2 |
Length | 50m/roll |
Finish treatment | Singeing,Calendering and PTFE dipping treatment. |
Air permeability (m3/m2/min): | 5.47 |
Tensile strength (N/5× 20cm) | Warp:>908 Weft:>1026 |
Tensile elongation (%): | Warp:<35 Weft:<50 |
Temperature (ºC): | Continue: 250 Instant: 280 |
Application | Mainly used in Combustion,Coal burning boiler,Waster incineration,Carbon black producing. |
Production Features:
Product Definition: Needle felt is ideal filter material for dust filtration, according to different materials, it includes Nomex needle felt, fiberglass needle felt, PPS needle felt, P84 needle felt, FMS needle felt, 100% PTFE needle felt.
Making method:
Our bags are sewn with 3 - needle chain stitch to ensure seam integrity. Top constructions consist of snap band, flange top, ring top, soft cuffs or raw edge. Bottom removal bags are constructed with a raw top or soft cuff. Top and bottom removal bag bottoms have disc bottoms that are sewn using an overlock (surge) stitch or lock stitch. A wear strip or custom skirts is attached to the bottom portion of the bag to prevent premature wear from bag-to-bag and bag-to-cage abrasion.
Packaging & Delivery:
Competitive Advantages:
1. We offer high quality products at competitive price in quick delivery.
2. 100% custom pass guaranteed.
3. Good after-sale service.
4. Flexible and Untraceable payment terms.
5. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
Shipping Details:
SHIPPING (Normally arrive port time in working days) |
||||
Destination | Express/Courier | SHIP BY SEA | SHIP BY AIR | SHIP BY EMS |
DHL/FEDEX/UPS/TNT | ||||
North America | 3~7 days | 15~24 days | 5~7 days | 10~12 days |
South America | 3~7 days | 15~25 days | 5~7 days | 10~12 days |
European Countries | 3~7 days | 20~30 days | 5~7 days | 10~12 days |
Africa Countries | 3~7 days | 40~50 days | 5~7 days | 10~12 days |
The Middle East | 3~7 days | 15~25 days | 5~7 days | 10~12 days |
Australia | 3~7 days | 10~15 days | 5~7 days | 10~12 days |
