Dust Collector Filter Bags
>
|
|
| Place of Origin | jiangsu |
| Brand Name | Filter |
| Model Number | filter bag |

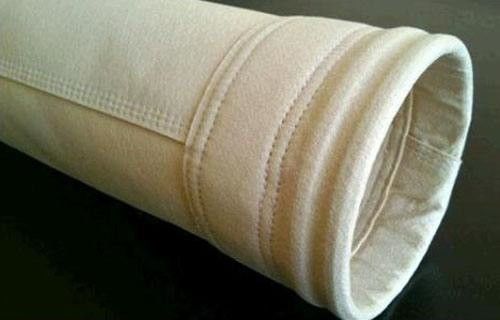

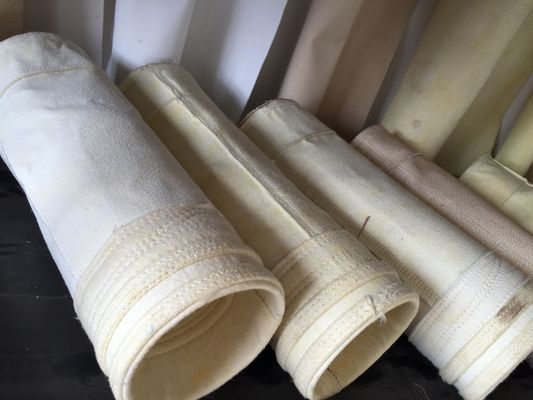

Arcylic Filter Bag
Description:
Material: Arcylic Needle Felt
Weight: 450GSM~650GSM
Diameter: Φ 120,Φ 130, Φ 135,Φ 138, Φ 152, Φ 158 etc. We make it as your requirements.
Length: 1000mm~8000mm. We make is as your requirements.
Technical Parameters:
| Fibre | Arcylic |
| Scrim | Arcylic |
| Weight(G/M2) | 450~550 |
| Thickness (mm) | 2.0 |
| Width (mm) | ≤ 2.2 |
| Length | 50m/roll |
| Finish treatment | Singeing, Calendering, Heat-set |
| Air permeability (m3/m2/min): | 15.8 |
| Tensile strength (N/5× 20cm) | Warp:>900 Weft:>1200 |
| Tensile elongation (%): | Warp:<35 Weft:<50 |
| Temperature (ºC): | Continue: 125 Instant: 140 |
| Application | Mainly used in metallurgy, chemical, building material, electric power station, mechanism industry, petroleum, medicine, printing and dyeing, food and beverage, and other industries to filter gas and recycle material. |
Production Feature:
1.Various material: Polyester(PE), Polypropylen(PP), Aramid, P84, Acrylic, PPS, Fiberglass, PTFE,Nomex,FMS etc.
2.Strong intensity.
3.Excellent anti-abrasion,good finishing treatment.
4.Good raw material, competitive price.
5.High filtration efficiency .
6.Fast delivery.
7.Size can be customized.
8.Factory manufacturer could contol quality and price.
9.Strict quality inspection and contol.
10.Professional designer team to match with your operating condition.
Applications:
Chemical processing:dryers in the pigment,plastic and catalyst industries
Minerals processing:dryers and finish mills in the cement industry
Metal processing:process collectors in the lead,primary base metal,and foundry industries
Making method:
Our bags are sewn with 3 - needle chain stitch to ensure seam integrity. Top constructions consist of snap band, flange top, ring top, soft cuffs or raw edge. Bottom removal bags are constructed with a raw top or soft cuff. Top and bottom removal bag bottoms have disc bottoms that are sewn using an overlock (surge) stitch or lock stitch. A wear strip or custom skirts is attached to the bottom portion of the bag to prevent premature wear from bag-to-bag and bag-to-cage abrasion.
Packaging & Delivery:
Competitive Advantages:
1. 100% custom pass guaranteed.
2. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
3. Flexible and Untraceable payment terms.
4. Good after-sale service.
5. We offer high quality products at competitive price in quick delivery.
Shipping Details:
|
SHIPPING (Normally arrive port time in working days) |
||||
| Destination | Express/Courier | SHIP BY SEA | SHIP BY AIR | SHIP BY EMS |
| DHL/FEDEX/UPS/TNT | ||||
| North America | 3~7 days | 15~24 days | 5~7 days | 10~12 days |
| South America | 3~7 days | 15~25 days | 5~7 days | 10~12 days |
| European Countries | 3~7 days | 20~30 days | 5~7 days | 10~12 days |
| Africa Countries | 3~7 days | 40~50 days | 5~7 days | 10~12 days |
| The Middle East | 3~7 days | 15~25 days | 5~7 days | 10~12 days |
| Australia | 3~7 days | 10~15 days | 5~7 days | 10~12 days |
