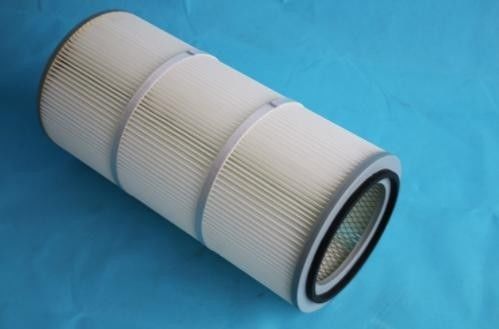

Polyester with PTFE membrane filter cartridge
  • Polyester with PTFE membrane filter cartridge
Polyester with PTFE membrane filter cartridge

Polyester with PTFE membrane filter cartridge

Product Details
High Light:

industrial dust collector bags

,

replacement dust collector bags

Product Description
Product Detail
Share to

Polyester with PTFE membrane filter cartridge

Inquire Add to Inquiry list
  • Product Description
Description
1.Used as the front-class filter to seprate tiny particulate in the high ar purity requirement and bacterial-free environment. such as industry, research, hospital, pharmaceutical and nuclear place. As high efficiency air filter, it is used to seprate the submicrone particulate, aerosal, toxic dust, virus, bacteria in the air of inlet and outlet wind.
2. Filter element can be combinated into filter to meet different airflow requirement.
3.According to the different application and requirement of filter element, the outline frame can adpot various materials, such as clamps, fiber board, zinc galvanizing steel plate, stainless steel or aluminum.
4.The outline dimensions can be manufactured according to the detailed requirements of the customer.
Optional Filter Media:
1) Spunbonded polyester
2) Polyester + Oil and water repellent
3) Polyester + PTFE Membrane (Coated by glue & Coated by heating)
4) Polyester + Anti-static (Aluminized antistatic & Polymer Antistatic )
5) Polyester + Flame retardant
6) Polyester + Dual anti-treatment (Anti-static+Flame retardant, Oil and water repellent+ Anti-static, PTFE Membrane+ Anti-static)
We will choose the most suitable filter media according to customers' requirement.
End Casp & Inner Core: Electro-galvanized to prevent corrosion. Stainless steel is also available.
Gasket: Professional sealing obturator elastic neoprene.
Features of dust cartridge:
1) Operating temperature135C.
2) Greatly increase the effective filtration area.
3) Ensure a low steady differential pressure, improve the circulation of air flow.
4) Small filter cartridge element, easy to install.
5) Especially suitable for large dust concentration industry.
Material Polyester overlay PTFE membrane
Structure Cylindrical Filter Cartridge
Dimension (OD)324*(ID)213*(H)600mm Sizes are according to your requirements.
Efficiency 100%(Particles≥5m)
End Caps Galvanized sheet
Inner Core
/ Outer Line		 Galvanized diamond mesh
Gasket Foam Rubber
Construction Open/Closed with bolt hole
MOQ NO MOQ . But advice full container to save cost.
20GP FCL:306 sets
40GP FCL:612 sets
40HQ FCL:714 sets
Loading Port Shanghai
Lead Time
