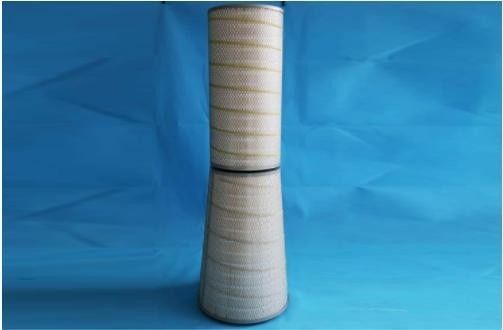

Conical filter cartridge

Inquire Add to Inquiry list
  • Product Description
Anhui Filter Conical&Cylinder filter cartridge sets come in a variety of configurations:Conical/Cylindrical,Conical/Conical,and Cylindrical/Cylindrical are ideal for gas turbine air inlet applications.
Description
1) Imported special air filter, large filter area.
2) Electro-galvanized end caps, not rust.
3) Electro-galvanized diamond mesh central skeleton, high opening rate.
4) Professional sealing obturator elastic neoprene.
5) Operating temperature ≤65°C.
6) Wide pleat height.
7) Ultra-high efficiency:99.99%.
8) Large amount of ventilation.
Material 80% cellulose fibrel+20% Polyester fibre
Structure Cylindrical & Conical Filter Cartridge
Dimension Cylindrical Filter: (OD)324*(ID)213*(H)660mm
Conical Filter: (OD)445/324*(ID)330*213*(H)660mm
Sizes are according to your requirements.
Efficiency F7
End Caps Galvanized sheet
Inner Core
/ Outer Line
Galvanized diamond mesh
Gasket Foam Rubber
Construction Cylindrical Filter: Open/Closed with bolt hole
Conical Filter: Open/Open
MOQ NO MOQ . But advice full container to save cost.
20GP FCL: 114 sets
40GP FCL: 230 sets
40HQ FCL: 275 sets
Loading Port Shanghai
Lead Time 10~15 days
Payment T/T ; West Union ; Paypal
Package Carton
