Felt Filter Bags
>
|
|
| Place of Origin | jiangsu |
| Brand Name | Filter |
| Model Number | Felet filter bags |

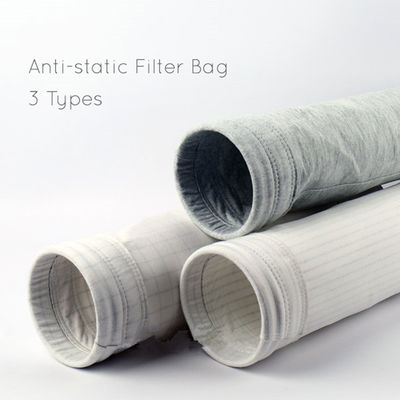

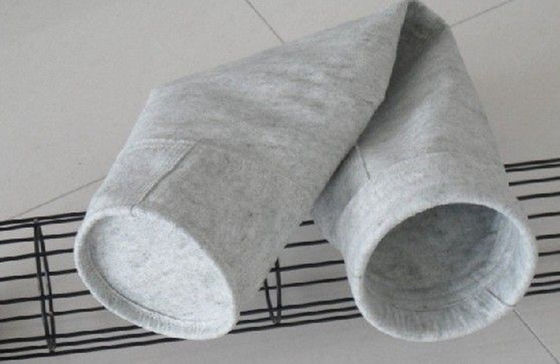

:Industrial Polyester oil&water repellent and anti-static Filter Bag
Description:
Material: Polyester oil&water repellent and anti-static Needle Felt
Weight: 450GSM~550GSM
Diameter: Φ 120,Φ 130, Φ 135,Φ 138,Φ 152, Φ 158 etc. We make it as your requirements.
Length: 1000mm~8000mm. We make is as your requirements.
Specification:
| Fibre | Polyester |
| Scrim | Polyester |
| Weight(G/M2) | 450~550 |
| Thickness (mm) | 2.0 |
| Width (mm) | ≤ 2.2 |
| Length | 50m/roll |
| Finish treatment | Singeing, Calendering,Oil&Water repellent and anti-static Treatment. |
| Air permeability (m3/m2/min): | 7.5 |
| Tensile strength (N/5× 20cm) | Warp:>900 Weft:>1200 |
| Tensile elongation (%): | Warp:<35 Weft:<50 |
| Temperature (ºC): | Continue: 120 Instant: 150 |
| Anti-acid | Good |
| Anti-alkali | Good |
| Anti-abrasion | Excellent |
| Hydrolytic stability | Good |
| Application | Mainly used in food and beverage industry,pharmaceutical industry,non-ferrous metallurgy,chemcial plant,building section and mining industry,power plant etc. |
Features:
1. High Voidage.
2. Good air permeability.
3. High dust collecting efficiency.
4. High tensile strength.
5. Strong elongation.
6. Long service life.
7. Moderate temperature rating.
Application:
1. Asphalt mixing plant.
2. Biomass power stations.
3. Chemical and pharmaceutical industry.
4. High temperature dedusting.
5. Coal-fired power stations.
6. Food industry.
7.Non-ferrous metal and steel production.
8.Cement,gypsum and lime industry.
9.Thermal waste treatment.
10.Mining Plant.
11.Steel Plant.
Normal temperature operation filter bag:
- Polypropylene needle felt filter bag
- Polyester needle felt filter bag
- Water proof polyester filter bag
- Anti-static conductive polyester filter bag
- Acrylic needle felt filter bagdus
High temperature filter bag:
- Aramid needle felt filter bag
- Nomex needle felt filter bag
- PPS (Polyphenylene Sulphide) filter bag
- P84 (Polyimide) filter bag
- PTFE needle felt filter bag
Making method:
Our bags are sewn with 3 - needle chain stitch to ensure seam integrity. Top constructions consist of snap band, flange top, ring top, soft cuffs or raw edge. Bottom removal bags are constructed with a raw top or soft cuff. Top and bottom removal bag bottoms have disc bottoms that are sewn using an overlock (surge) stitch or lock stitch. A wear strip or custom skirts is attached to the bottom portion of the bag to prevent premature wear from bag-to-bag and bag-to-cage abrasion.
Packaging & Delivery:
Competitive Advantages:
1. 100% custom pass guaranteed.
2. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
3. Flexible and Untraceable payment terms.
4. Good after-sale service.
5. We offer high quality products at competitive price in quick delivery.
