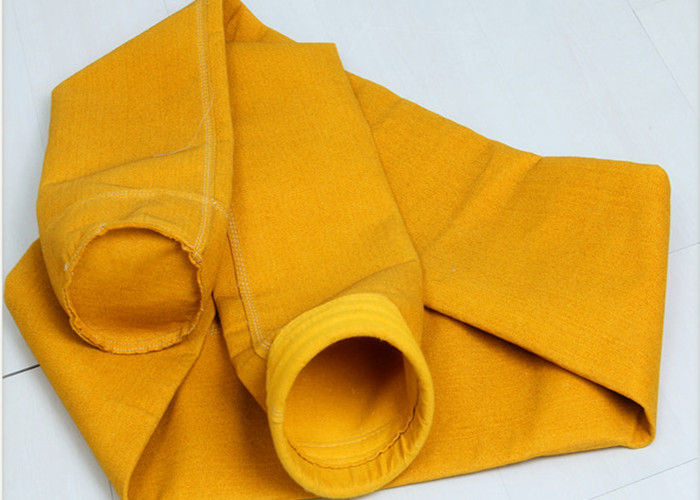

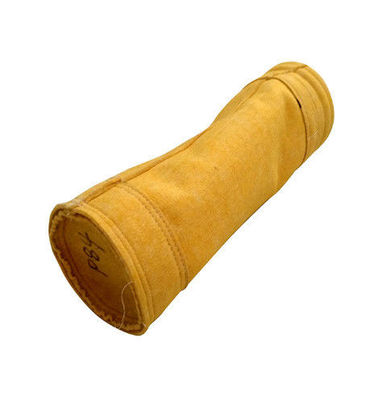

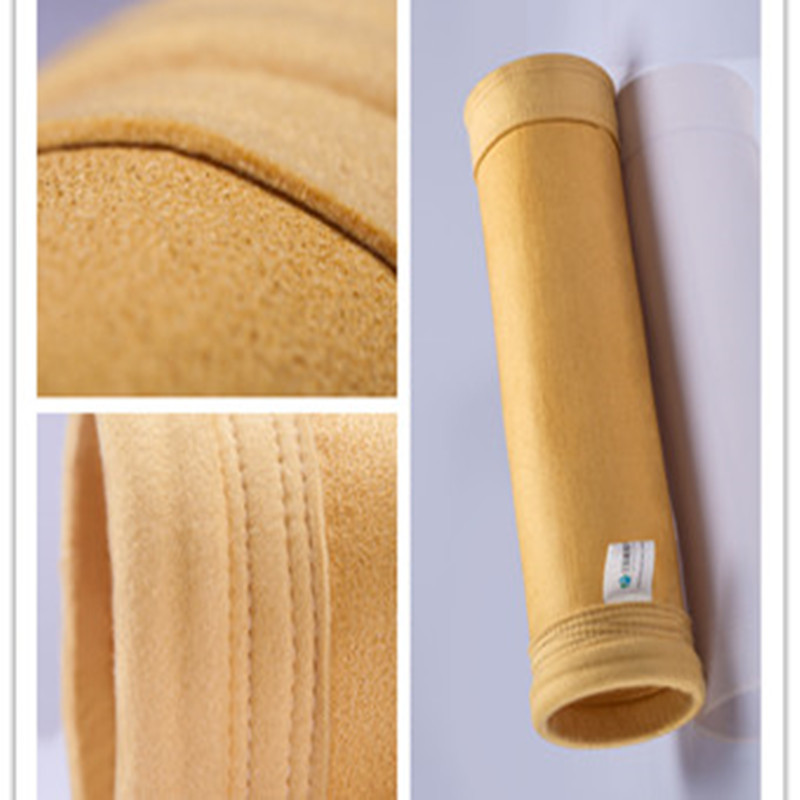

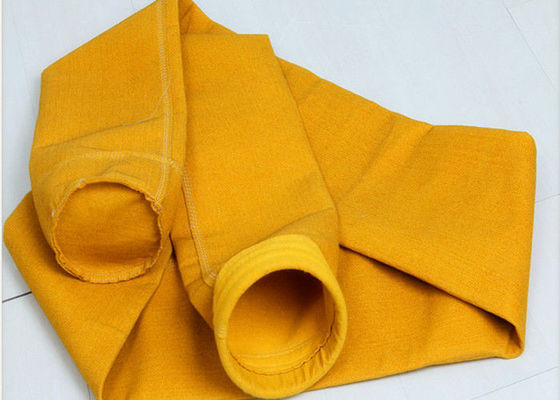

P84 Filter Bag
Description:
Material:P84 filter cloth
Weight: 500~550GSM
Diameter: Φ 120,Φ 130, Φ 135,Φ 138, Φ 152, Φ 158 etc. We make it as your requirements.
Length: 1000mm~8000mm. We make is as your requirements.
Specification:
Fibre | P84 |
Scrim | P84 |
Weight(G/M2) | 550 |
Thickness (mm) | 2.2 |
Width (mm) | ≤ 2.2 |
Length | 50m/roll |
Finish treatment | Singeing,Calendering and PTFE dipping treatment,Oil and Water repellent,with PTFE membrane treatment. |
Air permeability (m3/m2/min): | 8.72 |
Tensile strength (N/5× 20cm) | Warp:>900 Weft:>1200 |
Tensile elongation (%): | Warp:<35 Weft:<50 |
Temperature (ºC): | Continue: 250 Instant: 280 |
Application | Mainly used in Plaster Plant,Cement Plant,Waster Incinerator,Liquid Fluidized Bed Boiler and Coal Fired Boiler. |
Production Features:
1. Excellent steady under high temperature and resistance to acid;
2. P84 can operate continuously,under practical and low acid working conditions at temperature up to 500°F(260°C)
3. High Filtration efficiency,high tensile strength.
4. The complex cross sectional shapes create 30~90% more collection surface area when compared to round or oval shaped fibers.
5. Low back washing pressure,maximum flexibility.
6. The unique tri-lobal fiber structure of P84 provides customers with high effciency filtration,low pressure drop,and reduced cleaning energy.
7. Excellent dust cake release.
8. P84 has irregular,tri-lonal fibers that provide better collection efficiencies and enhanced dust cake release properties.
Making method:

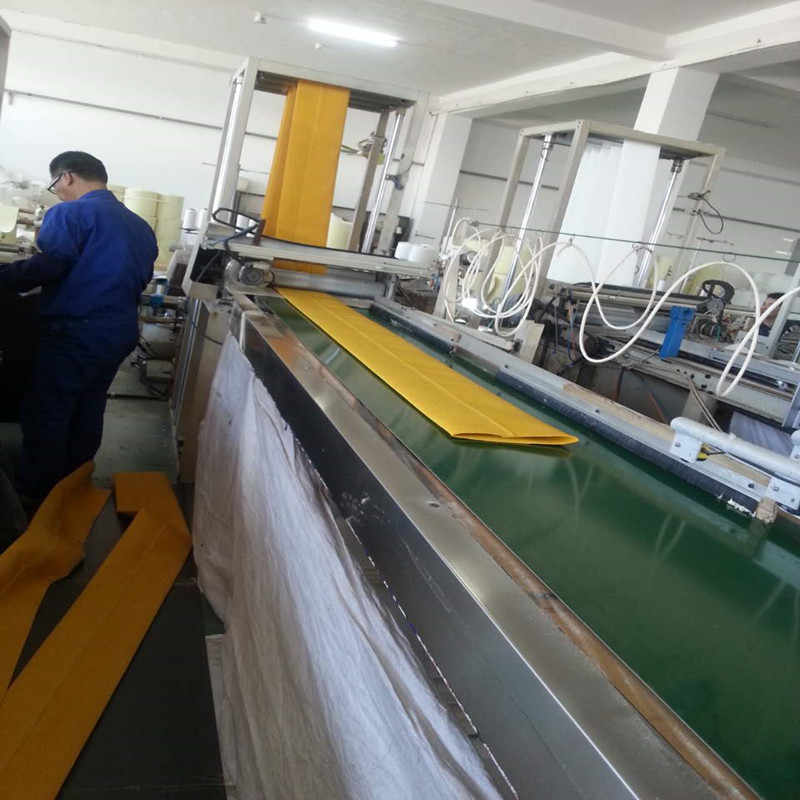

Our bags are sewn with 3 - needle chain stitch to ensure seam integrity. Top constructions consist of snap band, flange top, ring top, soft cuffs or raw edge. Bottom removal bags are constructed with a raw top or soft cuff. Top and bottom removal bag bottoms have disc bottoms that are sewn using an overlock (surge) stitch or lock stitch. A wear strip or custom skirts is attached to the bottom portion of the bag to prevent premature wear from bag-to-bag and bag-to-cage abrasion.
Application:
1. Asphalt mixing plant.
2. Biomass power stations.
3. Chemical and pharmaceutical industry.
4. High temperature dedusting.
5. Coal-fired power stations.
6. Food industry.
7.Non-ferrous metal and steel production.
8.Cement,gypsum and lime industry.
9.Thermal waste treatment.
