|Product Name:||Nomex(Aramid)filter Bag||Applicable Industrie:||Cement Plant,power Plant,steel Plant,mining Plant Etc.|
|Usage:||Dust Filter||Type:||Pocket Filter, Nomex(Aramid)filter Bag|
felt dust collector bags,
PTFE Membrane non woven filter bags,
Air Pocket High Temperature Filter Bags

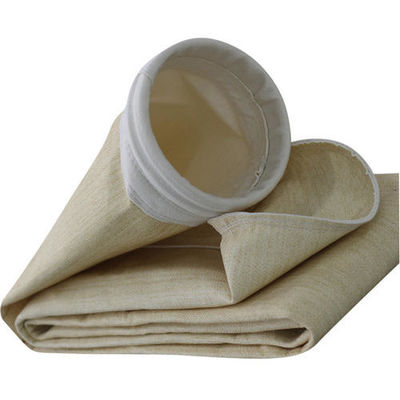

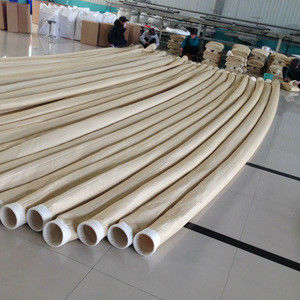

Nomex(Aramid) with PTFE membrane Filter Bag
Diameter: Φ 120,Φ 130, Φ 135,Φ 138, Φ 152, Φ 158 etc. We make it as your requirements.
Length: 1000mm~8000mm. We make is as your requirements.
|Width (mm)||≤ 2.2|
|Finish treatment||Singeing, Calendering, Heat-set,with PTFE membrane Treatment.|
|Air permeability (L/m2/s):||120~200|
|Tensile strength (N/5× 20cm)||Warp:>800 Weft:>1000|
|Tensile elongation (%):||Warp:<30 Weft:<50|
|Temperature (ºC):||Continue: 204 Instant: 240|
Surface treatment :
1.High temperature resistance
2.Good anti-acid/anti-alkali capacity
3.Excellent anti-abrasion capacity
4.High filtration efficiency
5.Good raw material, competitive price
7.Size can be customized.
1. Asphalt mixing plant.
2. Biomass power stations.
3. Chemical and pharmaceutical industry.
4. High temperature dedusting.
5. Coal-fired power stations.
6. Food industry.
7.Non-ferrous metal and steel production.
8.Cement,gypsum and lime industry.
9.Thermal waste treatment.

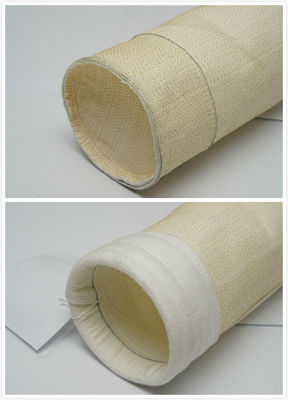

Our bags are sewn with 3 - needle chain stitch to ensure seam integrity. Top constructions consist of snap band, flange top, ring top, soft cuffs or raw edge. Bottom removal bags are constructed with a raw top or soft cuff. Top and bottom removal bag bottoms have disc bottoms that are sewn using an overlock (surge) stitch or lock stitch. A wear strip or custom skirts is attached to the bottom portion of the bag to prevent premature wear from bag-to-bag and bag-to-cage abrasion.
