High Temperature 100% Pure Steel Plant P84 Dust Extractor Filter Bags Acid Resistance 500~550 GSM
  • High Temperature 100% Pure Steel Plant P84 Dust Extractor Filter Bags  Acid Resistance  500~550 GSM
  • High Temperature 100% Pure Steel Plant P84 Dust Extractor Filter Bags  Acid Resistance  500~550 GSM
  • High Temperature 100% Pure Steel Plant P84 Dust Extractor Filter Bags  Acid Resistance  500~550 GSM
  • High Temperature 100% Pure Steel Plant P84 Dust Extractor Filter Bags  Acid Resistance  500~550 GSM

High Temperature 100% Pure Steel Plant P84 Dust Extractor Filter Bags Acid Resistance 500~550 GSM

Place of Origin jiangsu
Brand Name Filter
Product Details
Product Name:
Dust Collector Filter Bag
Applicable Industrie:
Building Material Shops, Manufacturing Plant, Printing Shops, Costruction Works
Usage:
Dust Filter
Type:
Pocket Filter, P84 Filter
Weight:
500~550GSM
Size:
Customized
High Light:

dust right bag

,

cement bag house

,

Acid Resistance P84 Filter Bags

Payment & Shipping Terms
Minimum Order Quantity
50pcs
Price
Negotiable
Packaging Details
Carton or Woven Bag
Delivery Time
3~15 days
Payment Terms
30% in advance,the balance against the copy of bill of Lading
Supply Ability
Supply 10000pcs filter bags per month
Product Description

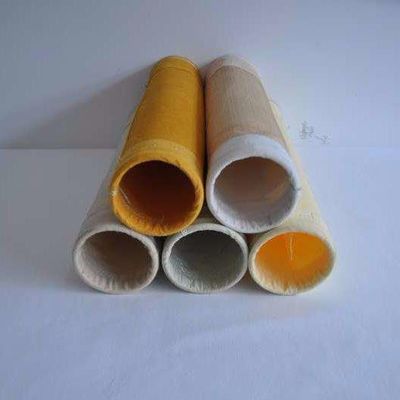

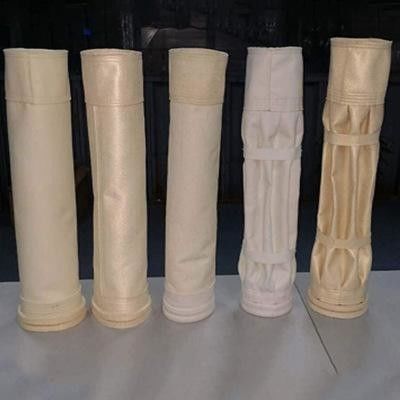

P84(Polyimide) Filter Bag



Description:



Material:P84 filter cloth
Weight: 500~550GSM
Diameter: Φ 120,Φ 130, Φ 135,Φ 138, Φ 152, Φ 158 etc. We make it as your requirements.
Length: 1000mm~8000mm. We make is as your requirements.



Specification:



Fibre P84
Scrim P84
Weight(G/M2) 550
Thickness (mm) 2.2
Width (mm) ≤ 2.2
Length 50m/roll
Finish treatment Singeing,Calendering and Heat-set.
Air permeability (m3/m2/min): 2.0
Tensile strength (N/5× 20cm) Warp:>900 Weft:>1200
Tensile elongation (%): Warp:<35 Weft:<50
Temperature (ºC): Continue: 250 Instant: 280
Application Mainly used in Plaster Plant,Cement Plant,Waster Incinerator,Liquid Fluidized Bed Boiler and Coal Fired Boiler.



Features:



1.Excellent steady under high temperature and resistance to acid;

2.P84 can operate continuously,under practical and low acid working conditions at temperature up to 500°F(260°C)

3.High Filtration efficiency,high tensile strength.

4.The complex cross sectional shapes create 30~90% more collection surface area when compared to round or oval shaped fibers.

5.Low back washing pressure,maximum flexibility.

6.The unique tri-lobal fiber structure of P84 provides customers with high effciency filtration,low pressure drop,and reduced cleaning energy.

7.Excellent dust cake release.

8.P84 has irregular,tri-lonal fibers that provide better collection efficiencies and enhanced dust cake release properties.



Application:



1. Asphalt mixing plant.

2. Biomass power stations.

3. Chemical and pharmaceutical industry.

4. High temperature dedusting.

5. Coal-fired power stations.

6. Food industry.

7.Non-ferrous metal and steel production.

8.Cement,gypsum and lime industry.

9.Thermal waste treatment.

10.Mining Plant.

11.Steel Plant.



Other products :



Polyester filter bags,anti-static polyester filter bags,water and oil proof polyester filter bags,with PTFE membraen filter bag, glassfiber filter bags,

Nomex filter bags,PPS filter bags,PTFE filter bags,P84 filter bags.etc.





Making method:

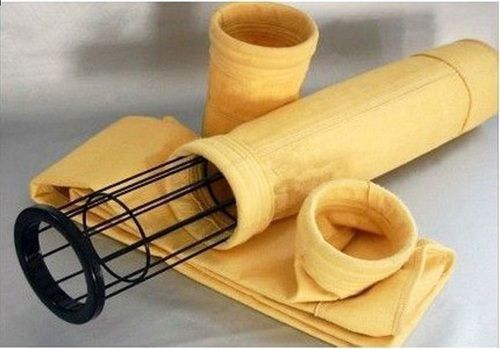

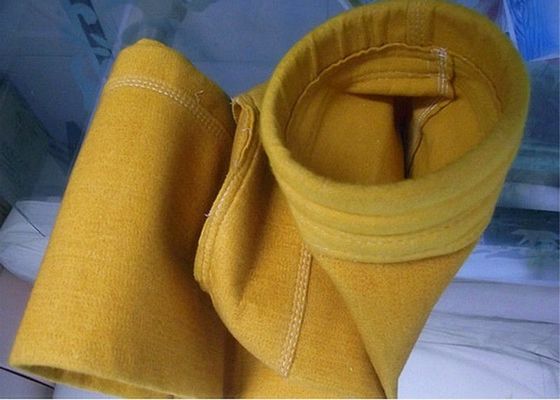

Our bags are sewn with 3 - needle chain stitch to ensure seam integrity. Top constructions consist of snap band, flange top, ring top, soft cuffs or raw edge. Bottom removal bags are constructed with a raw top or soft cuff. Top and bottom removal bag bottoms have disc bottoms that are sewn using an overlock (surge) stitch or lock stitch. A wear strip or custom skirts is attached to the bottom portion of the bag to prevent premature wear from bag-to-bag and bag-to-cage abrasion.



Packaging & Delivery:



High Temperature 100% Pure Steel Plant P84 Dust Extractor Filter Bags  Acid Resistance  500~550 GSM 0



Competitive Advantages:



1. 100% custom pass guaranteed.
2. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
3. Flexible and Untraceable payment terms.
4. Good after-sale service.

5. We offer high quality products at competitive price in quick delivery.
