High Temperature 550gsm Polyimide(P84) Filter Bag Anti-Acid & Anti-Alkali And Long Life
  • High Temperature 550gsm Polyimide(P84) Filter Bag Anti-Acid & Anti-Alkali And Long Life
  • High Temperature 550gsm Polyimide(P84) Filter Bag Anti-Acid & Anti-Alkali And Long Life
  • High Temperature 550gsm Polyimide(P84) Filter Bag Anti-Acid & Anti-Alkali And Long Life
  • High Temperature 550gsm Polyimide(P84) Filter Bag Anti-Acid & Anti-Alkali And Long Life

High Temperature 550gsm Polyimide(P84) Filter Bag Anti-Acid & Anti-Alkali And Long Life

Place of Origin jiangsu
Brand Name Filter
Model Number P84 filter bag
Product Details
Product Name:
Polyimide Dust Filter Bag
Applicable Industrie:
Building Material Shops, Manufacturing Plant, Printing Shops, Costruction Works
Usage:
Dust Filter
Type:
Pocket Filter, P84 Filter
Weight:
500~550GSM
Size:
Customized
High Light:

Anti Acid dust right bag

,

550gsm shaker felt dust collection bags

,

Anti Alkali P84 Filter Bags

Payment & Shipping Terms
Minimum Order Quantity
50pcs
Price
Negotiable
Packaging Details
Carton or Woven Bag
Delivery Time
3~15 days
Payment Terms
30% in advance,the balance against the copy of bill of Lading
Supply Ability
Supply 10000pcs filter bags per month
Product Description

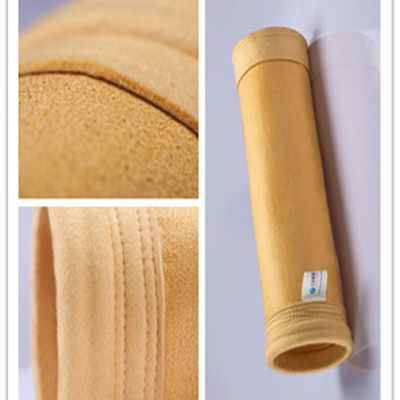

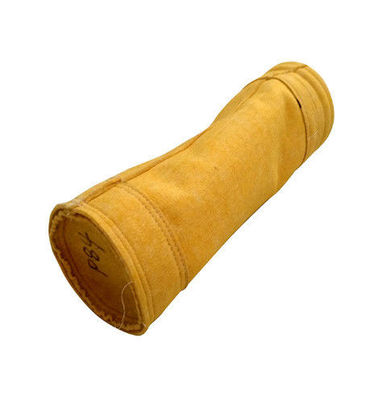

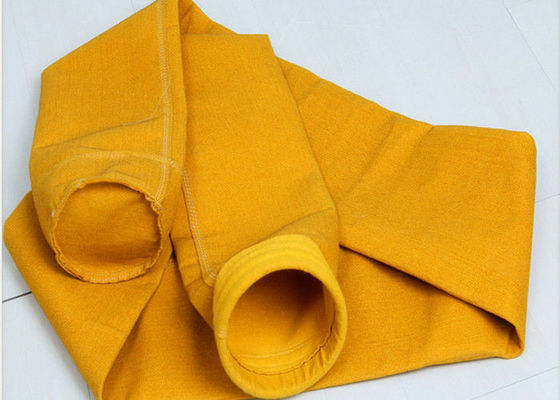

P84 Filter Bag



Description:



Material:P84 filter cloth
Weight: 500~550GSM
Diameter: Φ 120,Φ 130, Φ 135,Φ 138, Φ 152, Φ 158 etc. We make it as your requirements.
Length: 1000mm~8000mm. We make is as your requirements.



Specification:



Fibre P84
Scrim P84
Weight(G/M2) 550
Thickness (mm) 2.2
Width (mm) ≤ 2.2
Length 50m/roll
Finish treatment Singeing,Calendering and PTFE dipping treatment,Oil and Water repellent,with PTFE membrane treatment.
Air permeability (m3/m2/min): 8.72
Tensile strength (N/5× 20cm) Warp:>900 Weft:>1200
Tensile elongation (%): Warp:<35 Weft:<50
Temperature (ºC): Continue: 250 Instant: 280
Application Mainly used in Plaster Plant,Cement Plant,Waster Incinerator,Liquid Fluidized Bed Boiler and Coal Fired Boiler.



Production Features:



1. Excellent steady under high temperature and resistance to acid;

2. P84 can operate continuously,under practical and low acid working conditions at temperature up to 500°F(260°C)

3. High Filtration efficiency,high tensile strength.

4. The complex cross sectional shapes create 30~90% more collection surface area when compared to round or oval shaped fibers.

5. Low back washing pressure,maximum flexibility.

6. The unique tri-lobal fiber structure of P84 provides customers with high effciency filtration,low pressure drop,and reduced cleaning energy.

7. Excellent dust cake release.

8. P84 has irregular,tri-lonal fibers that provide better collection efficiencies and enhanced dust cake release properties.

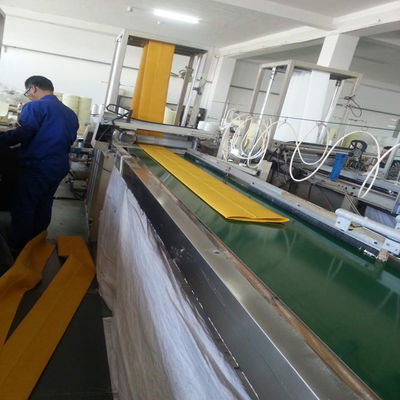

Making method:

Our bags are sewn with 3 - needle chain stitch to ensure seam integrity. Top constructions consist of snap band, flange top, ring top, soft cuffs or raw edge. Bottom removal bags are constructed with a raw top or soft cuff. Top and bottom removal bag bottoms have disc bottoms that are sewn using an overlock (surge) stitch or lock stitch. A wear strip or custom skirts is attached to the bottom portion of the bag to prevent premature wear from bag-to-bag and bag-to-cage abrasion.



Application:



1. Asphalt mixing plant.

2. Biomass power stations.

3. Chemical and pharmaceutical industry.

4. High temperature dedusting.

5. Coal-fired power stations.

6. Food industry.

7.Non-ferrous metal and steel production.

8.Cement,gypsum and lime industry.

9.Thermal waste treatment.



Packaging & Delivery:



High Temperature 550gsm Polyimide(P84) Filter Bag Anti-Acid & Anti-Alkali And Long Life 0



Competitive Advantages:



1. 100% custom pass guaranteed.
2. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
3. Flexible and Untraceable payment terms.
4. Good after-sale service.

5. We offer high quality products at competitive price in quick delivery.



Shipping Details:



SHIPPING

(Normally arrive port time in working days)

Destination Express/Courier SHIP BY SEA SHIP BY AIR SHIP BY EMS
DHL/FEDEX/UPS/TNT
North America 3~7 days 15~24 days 5~7 days 10~12 days
South America 3~7 days 15~25 days 5~7 days 10~12 days
European Countries 3~7 days 20~30 days 5~7 days 10~12 days
Africa Countries 3~7 days 40~50 days 5~7 days 10~12 days
The Middle East 3~7 days 15~25 days 5~7 days 10~12 days
Australia 3~7 days 10~15 days 5~7 days 10~12 days
