Anhui Filter Environmental Technology Co.,Ltd.
Product Details:
Payment & Shipping Terms:
|
Product: | Low Pressure Offline Dust Collector | Material Of Bag: | Needle Felt, Glass Fiber, PTFE, FMS. |
---|---|---|---|
Work Principle: | PLC Automatic Control | Characteristics: | Novel Design |
Concentration Of Emission: | 50-100mg/m3 | ||
High Light: | temperature control air filter bag,fabric filter plant bags,Temperature Control Industrial Dust Collector |

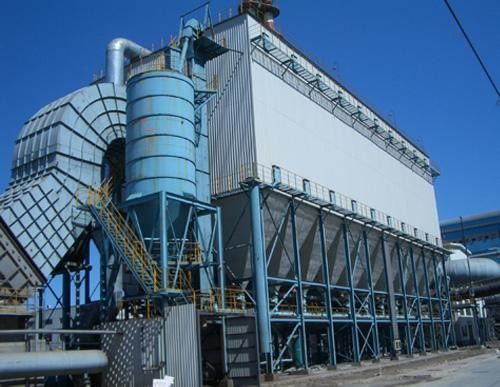

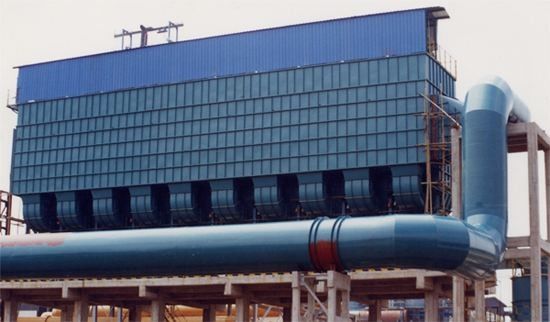

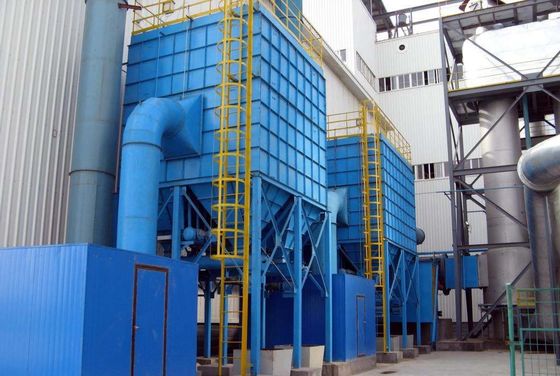

Low Pressure Offline Dust Collector
Description:
LCMseries pulse long bag dust collector is the company engineering and technical personnel in the injection pulse except for bag dust collector.
Based on the technology of dust, and to meet the wind volume of flue gas purification needs of low pressure pulse bag dust collector. It has not only than the sail cloth bag dust remover deashing ability, high dust removal efficiency, emission concentration is low, but also has stable and reliable, low gas consumption, covers an area of small features, particularly suitable for processing large amount of flue gas . JDMC series low-voltage long bag pulse filter in the world has been widely used, in foreign countries also has a large number of use, promotion, and can be widely used in cement, metallurgy, petrochemical, building materials, food, machinery, electric power, carbon black, garbage, industrial furnace high temperature dust gas purification and dust-shaped materials recovery. This product is integrated sectional reverse blow and pulse cleaning dust remover has the advantages of two types, overcame sectional reverse blow ash strength is insufficient and the general pulse cleaning dust attached such shortcomings, the cleaning efficiency, injection frequency is greatly reduced. The use of the product drowned pulse valve, reducing the blowing air pressure and energy consumption of equipment in operation, prolongs the service life of the valve bag filter, pulse, comprehensive technical performance in improving.
Performance characteristics
The novel design, the air intake structure, coarse particles of a high temperature falls into the ash hopper directly, effectively protects the filter bag. Use of long bag, under the same processing power equipment covers an area of small, more convenient for the transformation of the old factory. Use divided chamber off-line cleaning, high efficiency, two times less dust adsorption, and effectively reducing the energy consumption of the equipment, the filter bag with a pulse valve fatigue degree is reduced accordingly, increase the filter and valve life, reduce the number of equipment operation and maintenance costs. The maintenance for bag can not stop system fan, the normal operation of the system under the conditions of divided chamber. The bag mouth adopts a spring tensioning structure, convenient disassembly and assembly, good sealing performance. The box body through the gas tightness design, and kerosene leak detection, maximum extent possible to reduce air leakage. The whole device by the PLC machine control, automatic cleaning, unloading, automatic temperature control and temperature.
Dust Collector Bag Filter Specification:
Type Item |
1850 | 2300 | 2800 | 3700 | 4600 | 5500 | 6500 | 1850×2 | 2300×2 | 2800×2 | 3700×2 |
Filtration Area(m2) | 1850 | 2300 | 2800 | 3700 | 4600 | 5500 | 6500 | 3700 | 4600 | 5600 | 7400 |
Air Volume(m3/h) | 16.2 | 20.7 | 25.2 | 33.3 | 41.4 | 49.5 | 58.5 | 33.3 | 41.4 | 50.4 | 66.6 |
Filter Bag Quantity(piece) | 616 | 770 | 924 | 1232 | 1540 | 1848 | 2156 | 1232 | 1540 | 1848 | 2464 |
Filter standard(diameter×length) | Φ160 ×6050mm | ||||||||||
Deashing Method | Offline Deashing | ||||||||||
Amount of offline room(piece) | 4 | 5 | 6 | 8 | 10 | 12 | 14 | 8 | 10 | 12 | 16 |
Air Leak Percentage(%) | ≤2% | ||||||||||
Inlet Gas Concentration(mg/m3) | ≤20g/m3 | ||||||||||
Concentration of Emission(mg/m3) | 50-100mg/m3 | ||||||||||
Pulse Valve Quantity(piece) | 44 | 55 | 66 | 88 | 110 | 132 | 154 | 88 | 110 | 132 | 176 |
Size of Outside (length×width×height)(mm) | 11500× 5500× 13800 |
13800× 5500× 13800 |
16560× 5500× 13800 |
22080× 5500× 13800 |
27600× 5500× 13800 |
33120× 5500× 13800 |
38640× 5500× 13800 |
11500× 10300× 13800 |
13800× 10300× 13800 |
16560× 10300× 13800 |
22080× 10300× 13800 |
Dust Collector Fittings:
Competitive Advantages:
1. 100% custom pass guaranteed.
2. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
3. Flexible and Untraceable payment terms.
4. Good after-sale service.
5. We offer high quality products at competitive price in quick delivery.
Shipping Details:
SHIPPING (Normally arrive port time in working days) |
||||
Destination | Express/Courier | SHIP BY SEA | SHIP BY AIR | SHIP BY EMS |
DHL/FEDEX/UPS/TNT | ||||
North America | 3~7 days | 15~24 days | 5~7 days | 10~12 days |
South America | 3~7 days | 15~25 days | 5~7 days | 10~12 days |
European Countries | 3~7 days | 20~30 days | 5~7 days | 10~12 days |
Africa Countries | 3~7 days | 40~50 days | 5~7 days | 10~12 days |
The Middle East | 3~7 days | 15~25 days | 5~7 days | 10~12 days |
Australia | 3~7 days | 10~15 days | 5~7 days | 10~12 days |
