| Place of Origin | jiangsu |
| Brand Name | Filter |
| Model Number | Felt filter bags |

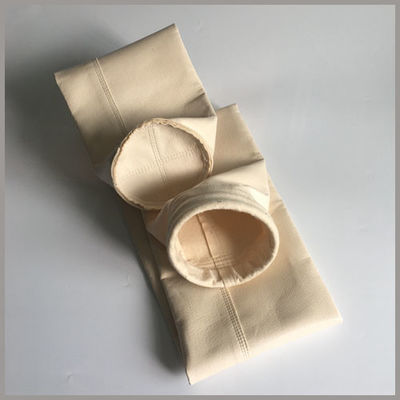

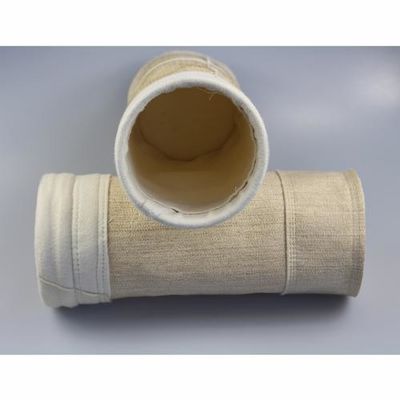

PPS Filter Bag for Industrial Dust Collector
Description:
Material:PPS Needle Felt
Weight: 450GSM~550GSM
Diameter: Φ 120,Φ 130, Φ 135,Φ 138, Φ 152, Φ 158 etc. We make it as your requirements.
Length: 1000mm~8000mm. We make is as your requirements.
Technical Data:
| Fibre | PPS |
| Scrim | PPS |
| Weight(G/M2) | 450~550 |
| Thickness (mm) | 2.2 |
| Width (mm) | ≤ 2.2 |
| Length | 50m/roll |
| Finish treatment | Singeing, Calendering,PPS dipping treatment. |
| Air permeability (m3/m2/min): | 11.2 |
| Tensile strength (N/5× 20cm) | Warp:>1020 Weft:>1340 |
| Tensile elongation (%): | Warp:<21 Weft:<34 |
| Temperature (ºC): | Continue: 150 Instant: 192 |
| Anti-acid | Excellent |
| Anti-alkali | Excellent |
| Anti-abrasion | Excellent |
| Hydrolytic stability | Excellent |
Specification of PPS Filter Bag:
Fabric: PPS fiber (polyphenylene sulfide)
Temperature resistance: up to 200ºC (392ºF)
Area weight (g/m2): 350~700
Thickness (mm): 1.2~2.4
Filtration precision: ≤30mg/nm3
Working lifetime: 8000 hours and more
Diameter & Length: No limited
MOQ: 50pcs. Support retail, and freight is on your own account.
Features of PPS Filter Bag:
The acid and alkali resistance is Excellent. Meanwhile, PPS fiber does not burn, neither does it support burning. The temperature resistance is up to 200ºC (392ºF).
The resistance to oxidation is poor. So the working environment requires the oxygen content less than 14%(Vol.), and the oxynitride content is less than 600mg/Nm3. The higher oxygen contents the lower working temperature.
Applications:
Coal - Fired Boilers bag houses Calciners / Catalysts.
Municipal Solid Waste Boilers and Waste incinerator.
Electric power plant Electrolysis and other Specialty membranes.
Waste to energy Iron and non ferrous Metal Industry.
Normal temperature operation filter bag:
- Polypropylene needle felt filter bag
- Polyester needle felt filter bag
- Water proof polyester filter bag
- Anti-static conductive polyester filter bag
- Acrylic needle felt filter bagdus
High temperature filter bag:
- Aramid needle felt filter bag
- Nomex needle felt filter bag
- PPS (Polyphenylene Sulphide) filter bag
- P84 (Polyimide) filter bag
- PTFE needle felt filter bag
Making method:
Our bags are sewn with 3 - needle chain stitch to ensure seam integrity. Top constructions consist of snap band, flange top, ring top, soft cuffs or raw edge. Bottom removal bags are constructed with a raw top or soft cuff. Top and bottom removal bag bottoms have disc bottoms that are sewn using an overlock (surge) stitch or lock stitch. A wear strip or custom skirts is attached to the bottom portion of the bag to prevent premature wear from bag-to-bag and bag-to-cage abrasion.
