| Place of Origin | china |
| Brand Name | Filter |
| Model Number | liquid filter bag |

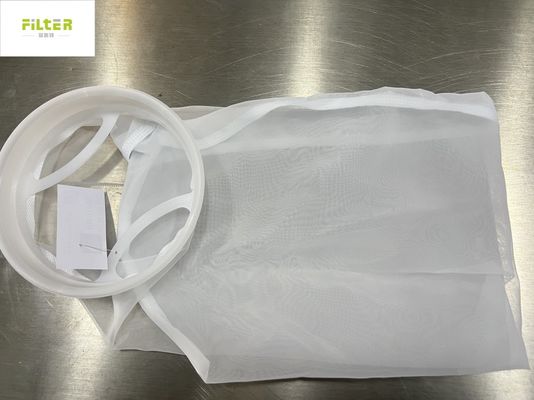

Custom Size Micron PP PE Nylon Water Filter Bag:
PRODUCT DESCRIPTION:
| Brand | FILTER |
| Material | PE / PP / NMO / PTFE |
| Size | 1# 180*410mm/ 2# 180*810mm/ 3# 102*210mm/ 4# 102*360mm/ 5# 152*560mm |
| Filtration accuracy | 0.5-300 microns(µm) |
| Bag body types | Stitched, Welded |

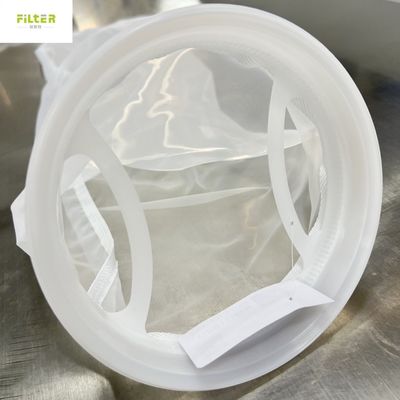

| Bag top types | Plastic ring top, Metal ring top, Raw top, Drawstring top |
Bag bottom types |
"Arc" shape bottom, "V" shape bottom |
| Model | Filter Bag Area (m²) | Filter Bag Volume (Liter) | Filter Bag Diameter (Inch/cm) | Filter Bag Length (Inch/cm) |
1# |
0.19 | 7.9 | 7/18 | 16/41 |
2# |
0.41 | 17.3 | 7/18 | 32/81 |
3# |
0.05 | 1.4 | 4/10.2 | 8.25/21 |
4# |
0.09 | 2.5 | 4/10.2 | 14/36 |
5# |
0.22 | 8.1 | 6/15.2 | 22/56 |
PRECISION CONVERSION TABLE:
Micron (μm) |
1 | 3 | 5 | 10 | 20 | 25 | 50 | 70 | 100 | 125 | 149 |
| Mesh | 15000 | 5000 | 2500 | 1250 | 625 | 550 | 300 | 200 | 140 | 120 | 100 |
Micron (μm) |
200 | 250 | 300 | 350 | 500 | 590 | 710 | 840 | 1000 | 1200 | 1400 |
Mesh |
70 | 60 | 50 | 45 | 35 | 30 | 25 | 20 | 18 | 16 | 14 |
FILTER DIAMETER REFERENCE TABLE:
| Mesh | 30 | 35 | 40 | 45 | 50 | 60 | 70 | 80 | 100 | 120 | 140 | 170 | 200 | 230 | 270 | 325 | 400 | 425 | 500 | 625 | 800 | 1250 | 2500 | 6250 | 12500 |
| μm | 595 | 500 | 420 | 354 | 297 | 250 | 210 | 177 | 149 | 125 | 105 | 88 | 74 | 63 | 53 | 44 | 37 | 33 | 25 | 20 | 15 | 10 | 5 | 2 | 1 |
THE CHEAMCIAL RESISTANCE OF LIQUID FILTER BAG:
|
The Chemical Resistance Of Liquid Filter Bag
|
|||
|
Fiber Material
|
Polyester (PE)
|
Nylon (NMO)
|
Polypropylene (PP)
|
|
Abrasion Resistance
|
Very Good
|
Excellent
|
Very Good
|
|
Weakly Acid
|
Very Good
|
General
|
Excellent
|
|
Strongly Acid
|
Good
|
Poor
|
Excellent
|
|
Weakly Alkali
|
Good
|
Excellent
|
Excellent
|
|
Strongly Alkali
|
Poor
|
Excellent
|
Excellent
|
|
Solvent
|
Good
|
Good
|
General
|
PRODUCT DETAILS:
1. Five-thread sewing hemming technology High pressure resistance.
The bag mouth is tightly stitched without gaps.
The needle thread is tight and there is no needle eye to prevent leakage.
This product is produced using a high-speed industrial sewing machine and uses silicone-free oil to cool down.
2. Hot melt welding Sealed without leakage
Hot-melt welding, seamless combination process, strengthen the dirt collection effect.
Use digital co-located multi-point welding equipment to ensure that each point of welding is firm.
Without any special bleaching and dyeing treatment, it fully complies with environmental standards.
BOTTOM TYPE:
PRODUCT PROCESS:
APPLICATION:
CERTIFICATE:
