Liquid Filter Bag
>
|
|
| Place of Origin | jiangsu |
| Brand Name | Filter |
| Model Number | liquid filter bag |

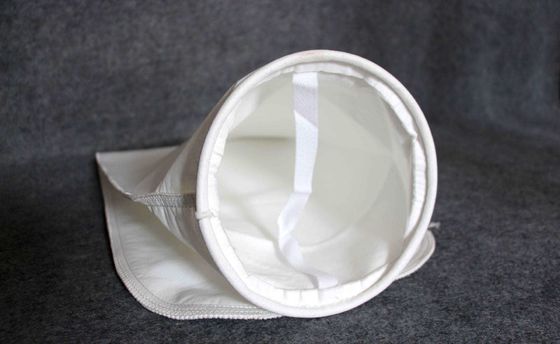

Micron Filter Bags for Liquid Filtration
Styles Of Filter Bag Media:

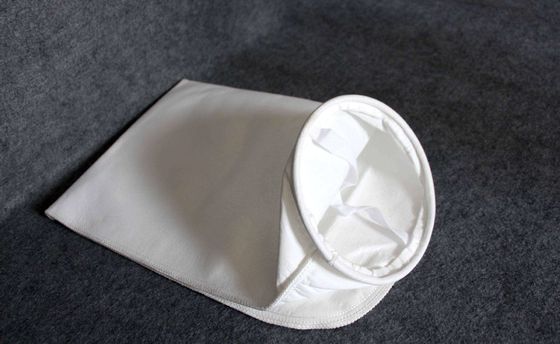

• FELT: Available in polyester and polypropylene, felt is generally used when particle retention of 1-200 microns is required. Felt media provides three dimensional depth filtration, resulting in a much higher solids loading capacity over the equivalent area of mesh fabric.

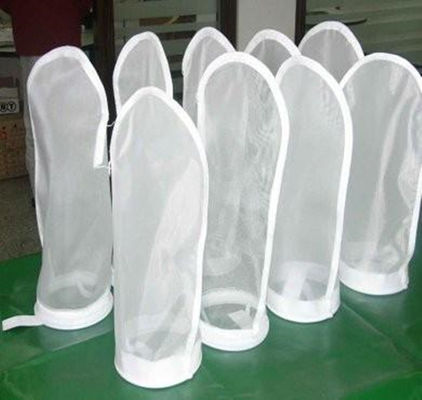

• MESH: NYLON MONOFILAMENT- A woven fabric with evenly spaced holes. Suitable for surface filtration only, monofilament consists of single untwisted thread. Bags are available in 25-800 microns.
• POLYESTER MULTIFILAMENT- Also suitable for surface filtration, this low cost, disposable fabr
ic consists of many smaller diameter threads twisted together. Available in 100-800 microns.
Liquid Filter Bag Technical Data:
| Bag Construction | Filter Media | Micron(μm) | Top Design | Bottom Design |
|
Sewing Thread Hot-melt |
PE,PO/PP,NMO |
1,5,10,25,50,80,100,125, 150,200,250,300,400,600, 800,1200,2500 |
Zinc-plated SS304 Plastic Ring |
Round or Square |
Filter Bag Specification:
| Type | Flow rate(m3/h) | Filtration Area(m2) |
Volume (L) |
Size (Diameter X Length) | |
| #1 | 20 | 0.25 | 8 | 7" x 17" (180mm x410mm) | |
| #2 | 40 | 0.50 | 7 | 7" x 32" (180mm x 810mm) | |
| #3 | 6 | 0.09 | 1.3 | 4" x 9" (108mm x 230mm) | |
| #4 | 12 | 0.16 | 2.5 | 4" x 15" (108mm x 380mm) | |
| *Size could be on your request. | |||||
Filter Bag Material Performance Table:
| Filter Media | Temp.(oC) | Strong Acid | Weak Acid | Strong Alkaline | Weak Alkaline | Oils and Fats | Organic Solution | Water Microorganism | Aromatic |
| PE | 150~170 | √ | √ | √ | √ | √ | |||
| PO/PP | 90~110 | √ | √ | √ | √ | √ | √ | √ | √ |
| NMO | 150~170 | √ | √ | √ | √ | √ | |||
| PTFE | 250~300 | √ | √ | √ | √ | √ | √ | √ | √ |
Filter Diameter Reference Table:
| Mesh | 30 | 35 | 40 | 45 | 50 | 60 | 70 | 80 | 100 | 120 | 140 | 170 | 200 | 230 | 270 | 325 | 400 | 425 | 500 | 625 | 800 | 1250 | 2500 | 6250 | 12500 |
| μm | 595 | 500 | 420 | 354 | 297 | 250 | 210 | 177 | 149 | 125 | 105 | 88 | 74 | 63 | 53 | 44 | 37 | 33 | 25 | 20 | 15 | 10 | 5 | 2 | 1 |
Application:
Widely in water filtering, nut-milk filtering,flour milling filtering, juices filtering, soybean milk filtering, milk power filtering, oil filtering, cheese filtering, air purification, powder coating filtering in industry and so on.
Produce Workshop:
Competitive Advantages:
1. 100% custom pass guaranteed.
2. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
3. Flexible and Untraceable payment terms.
4. Good after-sale service.
5. We offer high quality products at competitive price in quick delivery.
Shipping Details:
|
SHIPPING (Normally arrive port time in working days) |
||||
| Destination | Express/Courier | SHIP BY SEA | SHIP BY AIR | SHIP BY EMS |
| DHL/FEDEX/UPS/TNT | ||||
| North America | 3~7 days | 15~24 days | 5~7 days | 10~12 days |
| South America | 3~7 days | 15~25 days | 5~7 days | 10~12 days |
| European Countries | 3~7 days | 20~30 days | 5~7 days | 10~12 days |
| Africa Countries | 3~7 days | 40~50 days | 5~7 days | 10~12 days |
| The Middle East | 3~7 days | 15~25 days | 5~7 days | 10~12 days |
| Australia | 3~7 days | 10~15 days | 5~7 days | 10~12 days |
