|Product Name:||Polyester Filter Cartridge||Applicable Industrie:||Building Material Shops, Manufacturing Plant, Printing Shops, Costruction Works|
|Type:||Pleated Filter Cartridge||Color:||White /black|

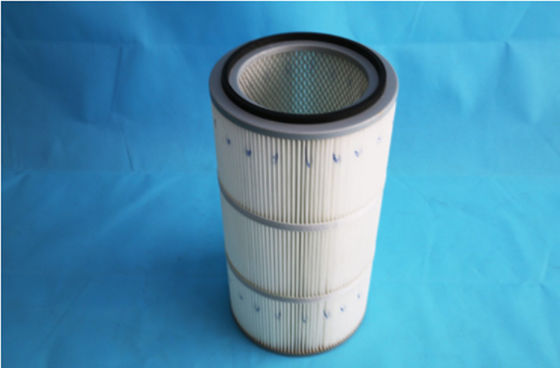

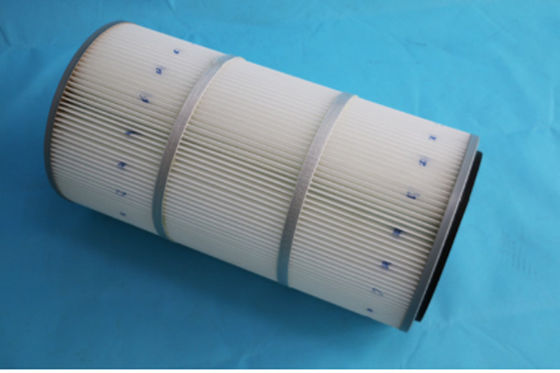

Polyester filter cartridge
1) Imported Donaldson filter media.
2) Good abrasion resistance,and the capability of withstand airflow pulse inverse blow is better than traditional filter media.
3) Smooth filter media surface,not sticky.
4) Excellent chemical resistance.
5) Good filter material stiffness,can be repeated washed.
Optional Filter Media:
1) Spunbonded polyester
2) Polyester + Oil and water repellent
3) Polyester + PTFE Membrane (Coated by glue & Coated by heating)
4) Polyester + Anti-static (Aluminized antistatic & Polymer Antistatic )
5) Polyester + Flame retardant
6) Polyester + Dual anti-treatment (Anti-static+Flame retardant, Oil and water repellent+ Anti-static, PTFE Membrane+ Anti-static)
We will choose the most suitable filter media according to customers' requirement.
End Casp: Galvanized metal with filter media potted in plastisol.
Inner Core: Expanded metal,either galvanized or stainless steel.
Pleats:To maintain maximum filtering surface,it maintains uniform spacing and is held in place with hot melt spiral beading inside and outside.
Gasket: Seamless Urethane.
Features of dust cartridge:
1) Operating temperature ≤ 135 ° C.
2) Greatly increase the effective filtration area.
3) Ensure a low steady differential pressure, improve the circulation of air flow.
4) Small filter cartridge element, easy to install.
5) Especially suitable for large dust concentration industry.
Size for Choose:
Conical : Length 660MM(26')*Large-end OD 445mm(17.5')*Small-end OD 324mm(12.75')
Cylindrical donaldson air filter : Length 660MM(26')*Large-end OD 324mm(12.75')*Small-end OD 324mm(12.75')
