Dust Filter Cartridge
>
|
| Place of Origin | jiangsu |
| Brand Name | Filter |
| Model Number | filter cartridge |

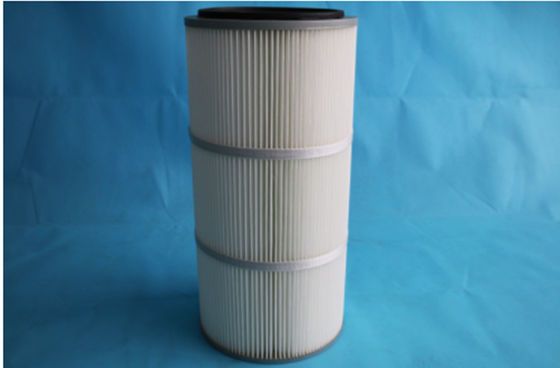

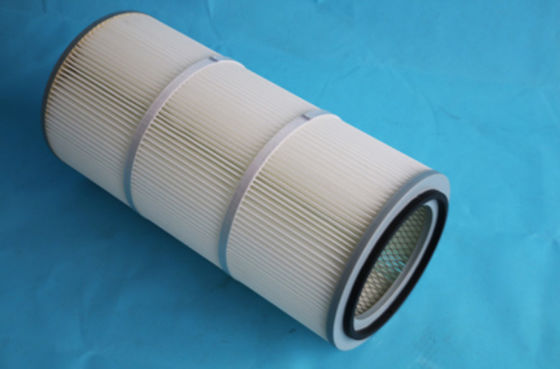

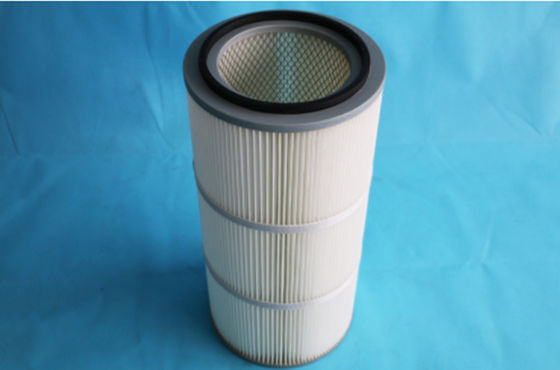

Polyester with PTFE membrane Filter Cartridge
Description:
1.Used as the front-class filter to seprate tiny particulate in the high ar purity requirement and bacterial-free environment. such as industry, research, hospital, pharmaceutical and nuclear place. As high efficiency air filter, it is used to seprate the submicrone particulate, aerosal, toxic dust, virus, bacteria in the air of inlet and outlet wind.
2. Filter element can be combinated into filter to meet different airflow requirement.
3.According to the different application and requirement of filter element, the outline frame can adpot various materials, such as clamps, fiber board, zinc galvanizing steel plate, stainless steel or aluminum.
4.The outline dimensions can be manufactured according to the detailed requirements of the customer.
Optional Filter Media:
1) Spunbonded polyester
2) Polyester + Oil and water repellent
3) Polyester + PTFE Membrane (Coated by glue & Coated by heating)
4) Polyester + Anti-static (Aluminized antistatic & Polymer Antistatic )
5) Polyester + Flame retardant
6) Polyester + Dual anti-treatment (Anti-static+Flame retardant, Oil and water repellent+ Anti-static, PTFE Membrane+ Anti-static)
We will choose the most suitable filter media according to customers' requirement.
End Casp & Inner Core: Electro-galvanized to prevent corrosion. Stainless steel is also available.
Gasket: Professional sealing obturator elastic neoprene.
Features of dust cartridge:
1) Operating temperature ≤ 135 ° C.
2) Greatly increase the effective filtration area.
3) Ensure a low steady differential pressure, improve the circulation of air flow.
4) Small filter cartridge element, easy to install.
5) Especially suitable for large dust concentration industry.
Specification:
| Material | Polyester overlay PTFE membrane |
| Structure | Cylindrical Filter Cartridge |
| Dimension | (OD)324*(ID)213*(H)600mm Sizes are according to your requirements. |
| Efficiency | 100%(Particles≥5μm) |
| End Caps | Galvanized sheet |
|
Inner Core / Outer Line |
Galvanized diamond mesh |
| Gasket | Foam Rubber |
| Construction | Open/Closed with bolt hole |
| MOQ |
NO MOQ . But advice full container to save cost. 20GP FCL:306 sets 40GP FCL:612 sets 40HQ FCL:714 sets |
| Loading Port | Shanghai |
| Lead Time | 10~15 days |
| Payment | T/T ; West Union ; Paypal |
| Package | Carton |
Delivery:
Competitive Advantages:
1. 100% custom pass guaranteed.
2. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
3. Flexible and Untraceable payment terms.
4. Good after-sale service.
5. We offer high quality products at competitive price in quick delivery.
Shipping Details:
|
SHIPPING (Normally arrive port time in working days) |
||||
| Destination | Express/Courier | SHIP BY SEA | SHIP BY AIR | SHIP BY EMS |
| DHL/FEDEX/UPS/TNT | ||||
| North America | 3~7 days | 15~24 days | 5~7 days | 10~12 days |
| South America | 3~7 days | 15~25 days | 5~7 days | 10~12 days |
| European Countries | 3~7 days | 20~30 days | 5~7 days | 10~12 days |
| Africa Countries | 3~7 days | 40~50 days | 5~7 days | 10~12 days |
| The Middle East | 3~7 days | 15~25 days | 5~7 days | 10~12 days |
| Australia | 3~7 days | 10~15 days | 5~7 days | 10~12 days |
