Anhui Filter Environmental Technology Co.,Ltd.
Product Details:
Payment & Shipping Terms:
|
Product Name: | Polyester Liquid Filter Bag | Applicable Industrie: | Building Material Shops, Manufacturing Plant, Printing Shops, Costruction Works |
---|---|---|---|
Usage: | Dust Filter | Type: | Pocket Filter, Polyester Liquid Filter Bag |
Micron Rating: | 10mesh~420mesh | Size: | Customized |

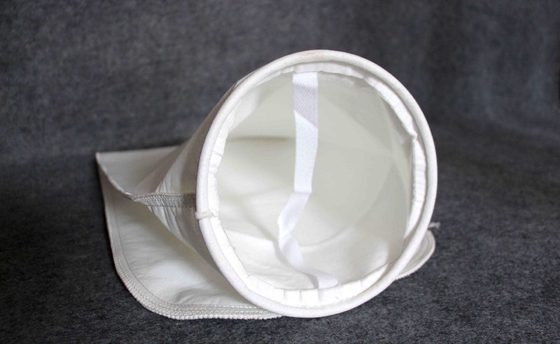

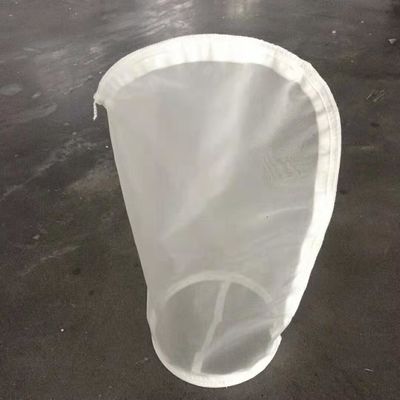

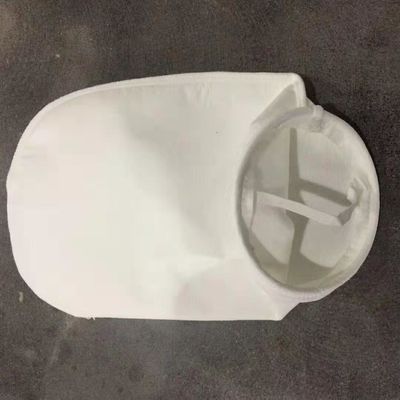

Polyester liquid filter bag
Item name: Polyester liquid filter bag
Material: Polyester needle felt
Micron rating:10mesh~420mesh
Construction: Hot-melt or sewing thread.
Collar type: Steel ring or plastic ring
Served industries:
Chemical industry, adhesive industry, paints industry, petrochemical industry, resin industry, cosmetic industry, etc.
We can produce filter bags to meet your specific requirements.
Liquid Filter Bag Technical Data
Bag Construction | Filter Media | Micron(μm) | Top Design | Bottom Design |
Sewing Thread Hot-melt |
PE,PO/PP,NMO |
1,5,10,25,50,80,100,125, 150,200,250,300,400,600, 800,1200,2500 |
Zinc-plated SS304 Plastic Ring |
Round or Square |
Filter Bag Specification
Type | Flow rate(m3/h) | Filtration Area(m2) |
Volume (L) |
Size (Diameter X Length) | |
#1 | 20 | 0.25 | 8 | 7" x 17" (180mm x410mm) | |
#2 | 40 | 0.50 | 7 | 7" x 32" (180mm x 810mm) | |
#3 | 6 | 0.09 | 1.3 | 4" x 9" (108mm x 230mm) | |
#4 | 12 | 0.16 | 2.5 | 4" x 15" (108mm x 380mm) | |
*Size could be on your request. |
Filter Bag Material Performance Table
Filter Media | Temp.(oC) | Strong Acid | Weak Acid | Strong Alkaline | Weak Alkaline | Oils and Fats | Glycol Ether | Organic Solution | Water Microorganism | Aromatic |
PE | 150~170 | √ | √ | √ | √ | √ | √ | |||
PO/PP | 90~110 | √ | √ | √ | √ | √ | √ | √ | √ | |
NMO | 150~170 | √ | √ | √ | √ | √ | ||||
PTFE | 250~300 | √ | √ | √ | √ | √ | √ | √ | √ | √ |
Filter Diameter Reference Table
Mesh | 30 | 35 | 40 | 45 | 50 | 60 | 70 | 80 | 100 | 120 | 140 | 170 | 200 | 230 | 270 | 325 | 400 | 425 | 500 | 625 | 800 | 1250 | 2500 | 6250 | 12500 |
μm | 595 | 500 | 420 | 354 | 297 | 250 | 210 | 177 | 149 | 125 | 105 | 88 | 74 | 63 | 53 | 44 | 37 | 33 | 25 | 20 | 15 | 10 | 5 | 2 | 1 |
