|Product Name:||PPS With PTFE Membrane Filter Bag||Applicable Industrie:||Steel Plant,Power Plant,Cement Plant Etc.|
|Usage:||Dust Filter||Type:||Pocket Filter,PPS Needle Felt|
High Temperature PPS with PTFE membrane Filter Bag
Material:PPS Needle Felt
Diameter: Φ 120,Φ 130, Φ 135,Φ 138, Φ 152, Φ 158 etc. We make it as your requirements.
Length: 1000mm~8000mm. We make is as your requirements.
|Width (mm)||≤ 2.2|
|Finish treatment||Singeing, Calendering,with PTFE membrane.|
|Air permeability (m3/m2/min):||1.65|
|Tensile strength (N/5× 20cm)||Warp:>900 Weft:>1200|
|Tensile elongation (%):||Warp:<35 Weft:<50|
|Temperature (ºC):||Continue: 150 Instant: 192|
Specification of PPS Filter Bag:
Fabric: PPS fiber (polyphenylene sulfide)
Temperature resistance: up to 200ºC (392ºF)
Area weight (g/m2): 350~700
Thickness (mm): 1.2~2.4
Filtration precision: ≤30mg/nm3
Working lifetime: 8000 hours and more
Diameter & Length: No limited
MOQ: 50pcs. Support retail, and freight is on your own account.
Features of PPS Filter Bag:
The acid and alkali resistance is Excellent. Meanwhile, PPS fiber does not burn, neither does it support burning. The temperature resistance is up to 200ºC (392ºF).
The resistance to oxidation is poor. So the working environment requires the oxygen content less than 14%(Vol.), and the oxynitride content is less than 600mg/Nm3. The higher oxygen contents the lower working temperature.
• Coal - Fired Boilers bag houses
• Municipal Solid Waste Boilers and Waste incinerator baghouse filter
• Calciners / Catalysts
• Thermal power plant
• Waste to energy
• Iron and non ferrous Metal Industry.
1. Water and oil repellent treatment: A substantial increase in performance of water and oil repellent
2. Acrylic coating: A substantial increase in Abrasion resistance property
3. Carbon coating: Anti-spark
4. PTFE film: Improve filtration precision: ≤5gsm/Nm3, but lower the filtration efficiency; and a substantial increase in acid-base resistance property
5. PTFE paint-coating: Improve filtration precision: ≤10gsm/Nm3, does not lower the filtration efficiency; and a substantial increase in acid-base resistance property
6. PTFE dipping: Improve filtration precision: ≤25gsm/Nm3, does not lower the filtration efficiency; and a small increase in acid-base resistance property

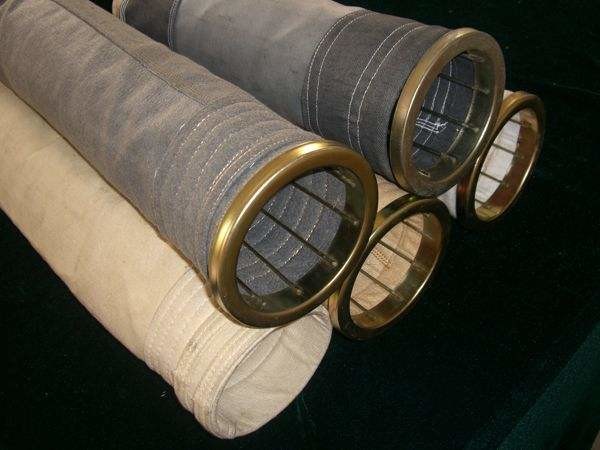

Our bags are sewn with 3 - needle chain stitch to ensure seam integrity. Top constructions consist of snap band, flange top, ring top, soft cuffs or raw edge. Bottom removal bags are constructed with a raw top or soft cuff. Top and bottom removal bag bottoms have disc bottoms that are sewn using an overlock (surge) stitch or lock stitch. A wear strip or custom skirts is attached to the bottom portion of the bag to prevent premature wear from bag-to-bag and bag-to-cage abrasion.
