|Product Name:||Felt Filter Bag||Applicable Industrie:||Cement Plant,power Plant,steel Plant,Asphalt Plant,Mining Plant Etc.|
|Usage:||Dust Filter||Type:||Pocket Filter, Aramid Dust Filter Bag|

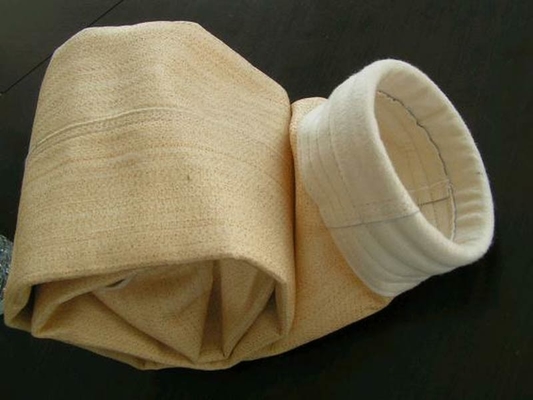

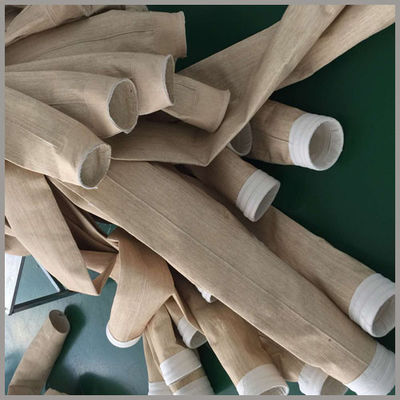

Aramid Dust Filter Bag
Diameter: Φ 120,Φ 130, Φ 135,Φ 138, Φ 152, Φ 158 etc. We make it as your requirements.
Length: 1000mm~8000mm. We make is as your requirements.
|Width (mm)||≤ 2.2|
|Finish treatment||Singeing, Calendering, Heat-set|
|Air permeability (L/m2/s):||120~200|
|Tensile strength (N/5× 20cm)||Warp:>1000 Weft:>1200|
|Tensile elongation (%):||Warp:<50 Weft:<55|
|Temperature (ºC):||Continue: 204 Instant: 240|
1.High temperature resistance
2.Good anti-acid/anti-alkali capacity
3.Excellent anti-abrasion capacity
4.High filtration efficiency
5.Good raw material, competitive price
7.Size can be customized
1. Asphalt mixing plant.
2. Biomass power stations.
3. Chemical and pharmaceutical industry.
4. High temperature dedusting.
5. Coal-fired power stations.
6. Food industry.
7.Non-ferrous metal and steel production.
8.Cement,gypsum and lime industry.
9.Thermal waste treatment.
Normal temperature operation filter bag:
- Polypropylene needle felt filter bag
- Polyester needle felt filter bag
- Water proof polyester filter bag
- Anti-static conductive polyester filter bag
- Acrylic needle felt filter bagdus
High temperature filter bag:
- Aramid needle felt filter bag
- Nomex needle felt filter bag
- PPS (Polyphenylene Sulphide) filter bag
- P84 (Polyimide) filter bag
- PTFE needle felt filter bag
Our bags are sewn with 3 - needle chain stitch to ensure seam integrity. Top constructions consist of snap band, flange top, ring top, soft cuffs or raw edge. Bottom removal bags are constructed with a raw top or soft cuff. Top and bottom removal bag bottoms have disc bottoms that are sewn using an overlock (surge) stitch or lock stitch. A wear strip or custom skirts is attached to the bottom portion of the bag to prevent premature wear from bag-to-bag and bag-to-cage abrasion.
Packaging & Delivery:
1. 100% custom pass guaranteed.
2. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
3. Flexible and Untraceable payment terms.
4. Good after-sale service.
5. We offer high quality products at competitive price in quick delivery.
(Normally arrive port time in working days)
|Destination||Express/Courier||SHIP BY SEA||SHIP BY AIR||SHIP BY EMS|
|North America||3~7 days||15~24 days||5~7 days||10~12 days|
|South America||3~7 days||15~25 days||5~7 days||10~12 days|
|European Countries||3~7 days||20~30 days||5~7 days||10~12 days|
|Africa Countries||3~7 days||40~50 days||5~7 days||10~12 days|
|The Middle East||3~7 days||15~25 days||5~7 days||10~12 days|
|Australia||3~7 days||10~15 days||5~7 days||10~12 days|
Contact Person: Nancy
product name: Polyester Filter Bag
Applicable Industrie: used in metallurgy, chemical, building material, electric power station, mechanism industry, petroleum, medicine, printing and dyeing, food and beverage, and other industries to filter gas and recycle material.
usage: Dust Filter
Type: Pocket Filter,Polyester filter cloth
