|Product Name:||PPS Filter Bag||Applicable Industrie:||Thermal Power Plant,coal Fired Boiler,cement Plant,steel Plant Etc.|
|Usage:||Dust Filter||Type:||Pocket Filter, PPS Filter Bag|

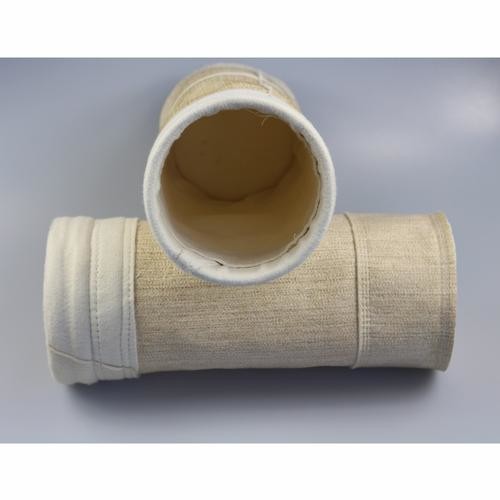

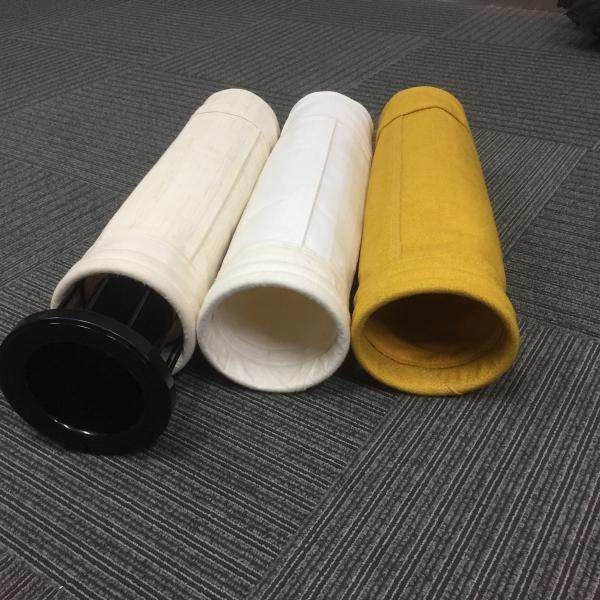

Industrial PPS Needle Felt Filter Bag
Material:PPS Needle Felt
Diameter: Φ 120,Φ 130, Φ 135,Φ 138, Φ 152, Φ 158 etc. We make it as your requirements.
Length: 1000mm~8000mm. We make is as your requirements.
|Width (mm)||≤ 2.2|
|Finish treatment||Singeing, Calendering,PPS dipping treatment.|
|Air permeability (m3/m2/min):||11.2|
|Tensile strength (N/5× 20cm)||Warp:>1020 Weft:>1340|
|Tensile elongation (%):||Warp:<21 Weft:<34|
|Temperature (ºC):||Continue: 150 Instant: 192|
Coal - Fired Boilers bag houses Calciners / Catalysts.
Municipal Solid Waste Boilers and Waste incinerator.
Electric power plant Electrolysis and other Specialty membranes.
Waste to energy Iron and non ferrous Metal Industry.
1.High efficient filtration level.
2.Depth type filtration.
3.Wide range of chemically compatible media.
4.High temperature resistance.
5.High flow efficiency.
6.High air to cloth ratio.
7.Various coatings are available.
Our bags are sewn with 3 - needle chain stitch to ensure seam integrity. Top constructions consist of snap band, flange top, ring top, soft cuffs or raw edge. Bottom removal bags are constructed with a raw top or soft cuff. Top and bottom removal bag bottoms have disc bottoms that are sewn using an overlock (surge) stitch or lock stitch. A wear strip or custom skirts is attached to the bottom portion of the bag to prevent premature wear from bag-to-bag and bag-to-cage abrasion.
Packaging & Delivery:
1. 100% custom pass guaranteed.
2. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
3. Flexible and Untraceable payment terms.
4. Good after-sale service.
5. We offer high quality products at competitive price in quick delivery
(Normally arrive port time in working days)
|Destination||Express/Courier||SHIP BY SEA||SHIP BY AIR||SHIP BY EMS|
|North America||3~7 days||15~24 days||5~7 days||10~12 days|
|South America||3~7 days||15~25 days||5~7 days||10~12 days|
|European Countries||3~7 days||20~30 days||5~7 days||10~12 days|
|Africa Countries||3~7 days||40~50 days||5~7 days||10~12 days|
|The Middle East||3~7 days||15~25 days||5~7 days||10~12 days|
|Australia||3~7 days||10~15 days||5~7 days||10~12 days|
