Custom Filter Bag Cage Easy To Install Prevent The Bag From Damage

I'm Online Chat Now

Custom Filter Bag Cage Easy To Install Prevent The Bag From Damage

China Custom Filter Bag Cage Easy To Install Prevent The Bag From Damage supplier

Large Image :  Custom Filter Bag Cage Easy To Install Prevent The Bag From Damage

Product Details:

Place of Origin: jiangsu
Brand Name: Filter

Payment & Shipping Terms:

Minimum Order Quantity: 50pcs
Price: Negotiable
Packaging Details: Carton or Woven Bag
Delivery Time: 3~15 days
Payment Terms: 30% in advance,the balance against the copy of bill of Lading
Supply Ability: Supply 10000pcs filter bags per month
Contact Now
Detailed Product Description
Product Name: Galvanized Steel Filter Bag Cage Applicable Industrie: Building Material Shops, Manufacturing Plant, Printing Shops, Costruction Works
Feature: Smooth, Slight, Straight Main Function: Filter Bag Skeleton
Shape: Custom Shape Size: Customized

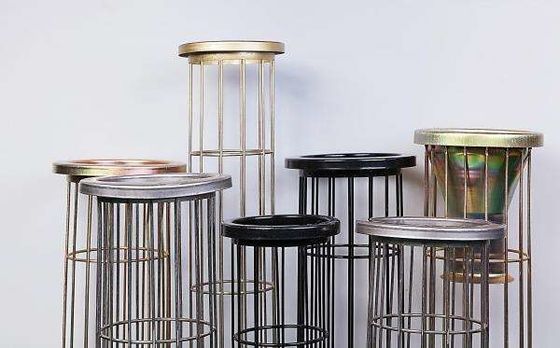

Industrial Dust Collector Bag Filter Cage with Venturi Tube



Dust collection organo silicone Galvanized / stainless steel / carbon steel filter bag cage


We surpply full range of filter bag cages; each cage can fit to the requirements of being light, handy, smooth and straight. Cage resembles the rib of bag. It should be light, handy, easy to install, maintain, and it is smooth and straight, to prevent the bag from damage.



1. material of cage: carbon steel or SS304,316,316L
2. type of cage: any style
3. type of the horizontal bar: round ring or star or envelop or oval
4. surface treatment: zinc-galvanization or silicon coating or epoxy
5. style of connection: clamp, chuck, claw join connection
6. Nos of wires: 8,10,12,16,20,24
7. The diameter of the longitudinal wire can be Φ3mm, Φ3.2mm, Φ3.5mm, Φ3.8mm or Φ4mm.



The vertical bar, horizontal ring, spacing ring, length, the diameter of the ring and the shape of the cage can be according with the requirement from client.

Provide us the data of filter bag cage:
The quality of filter cage has directly bearing on the filtering state and service life of a filter bag. So the detailed and accurate data can ensure the normal use of the product to the maximum extent. It's great that you can provide design drawings, or if you provide data according to the following information.
1. Filter cage material and size
2. Quantity of vertical wires
3. Space of Horizontal wires
4. Wire and Ring diameter
5. Cell plate sizes of dust collector or baghouse

Joint types of filter bag:
Different joint different price, please contact us to know more detail about joint.

Packing Type:

  1. Carton.
  2. Plastic Film.
  3. Steel Frame.
  4. According to your requirement.
