High Efficient PTFE Non Woven Filter Bags 750GSM Acid And Alkali Resistance

I'm Online Chat Now

High Efficient PTFE Non Woven Filter Bags 750GSM Acid And Alkali Resistance

China High Efficient PTFE Non Woven Filter Bags 750GSM Acid And Alkali Resistance supplier
High Efficient PTFE Non Woven Filter Bags 750GSM Acid And Alkali Resistance supplier High Efficient PTFE Non Woven Filter Bags 750GSM Acid And Alkali Resistance supplier High Efficient PTFE Non Woven Filter Bags 750GSM Acid And Alkali Resistance supplier

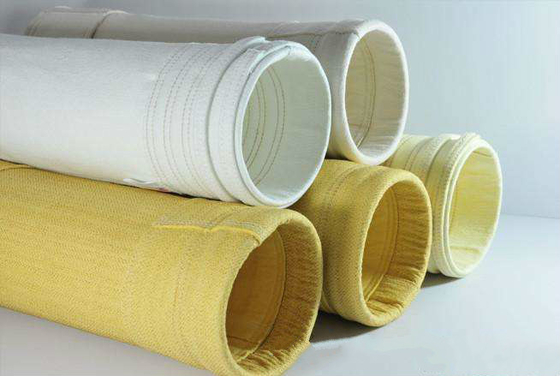

Large Image :  High Efficient PTFE Non Woven Filter Bags 750GSM Acid And Alkali Resistance

Product Details:

Place of Origin: jiangsu
Brand Name: Filter
Model Number: High Temperature Filter Bags

Payment & Shipping Terms:

Minimum Order Quantity: 50pcs
Price: Negotiable
Packaging Details: Carton or Woven Bag
Delivery Time: 3~15 days
Payment Terms: 30% in advance,the balance against the copy of bill of Lading
Supply Ability: Supply 10000pcs filter bags per month
Contact Now
Detailed Product Description
Product Name: PTFE(Teflon) Filter Bag Applicable Industrie: Combustion,Coal Burning Boiler,Waster Incineration,Carbon Black Producing.
Usage: Dust Filter Type: Pocket Filter, PTFE Filter Bag
Weight: 750GSM Size: Customized

High Temperature PTFE(Teflon) Filter Bag



Description:



Material:PTFE filter cloth
Weight: 750GSM
Diameter: Φ 120,Φ 130, Φ 135,Φ 138, Φ 152, Φ 158 etc. We make it as your requirements.
Length: 1000mm~8000mm. We make is as your requirements.



Specification:



Fibre PTFE
Scrim PTFE
Weight(G/M2) 750
Thickness (mm) 1.27
Width (mm) ≤ 2.2
Length 50m/roll
Finish treatment Singeing,Calendering and PTFE dipping treatment.
Air permeability (m3/m2/min): 5.47
Tensile strength (N/5× 20cm) Warp:>908 Weft:>1026
Tensile elongation (%): Warp:<35 Weft:<50
Temperature (ºC): Continue: 250 Instant: 280
Application Mainly used in Combustion,Coal burning boiler,Waster incineration,Carbon black producing.



Features:



  1. Be composed of 100% pure PTFE.
  2. It can operate at 240oC continuously.
  3. Acid and alkali resistance,corrosion resistance and have strong chemical stability(0-14PH)
  4. It can be used under high humidity environment.
  5. Low shrinkage rate even if under high temperature.



Product definition:



Needle felt is ideal filter material for dust filtration, according to different materials, it includes Nomex needle felt, fiberglass needle felt, PPS needle felt, P84 needle felt, FMS needle felt, 100% PTFE needle felt.





Making method:



Our bags are sewn with 3 - needle chain stitch to ensure seam integrity. Top constructions consist of snap band, flange top, ring top, soft cuffs or raw edge. Bottom removal bags are constructed with a raw top or soft cuff. Top and bottom removal bag bottoms have disc bottoms that are sewn using an overlock (surge) stitch or lock stitch. A wear strip or custom skirts is attached to the bottom portion of the bag to prevent premature wear from bag-to-bag and bag-to-cage abrasion.



Packaging & Delivery:



High Efficient PTFE Non Woven Filter Bags 750GSM Acid And Alkali Resistance



Competitive Advantages:



1. 100% custom pass guaranteed.
2. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
3. Flexible and Untraceable payment terms.
4. Good after-sale service.

5. We offer high quality products at competitive price in quick delivery.



Shipping Details:



SHIPPING

(Normally arrive port time in working days)

Destination Express/Courier SHIP BY SEA SHIP BY AIR SHIP BY EMS
DHL/FEDEX/UPS/TNT
North America 3~7 days 15~24 days 5~7 days 10~12 days
South America 3~7 days 15~25 days 5~7 days 10~12 days
European Countries 3~7 days 20~30 days 5~7 days 10~12 days
Africa Countries 3~7 days 40~50 days 5~7 days 10~12 days
The Middle East 3~7 days 15~25 days 5~7 days 10~12 days
Australia 3~7 days 10~15 days 5~7 days 10~12 days
