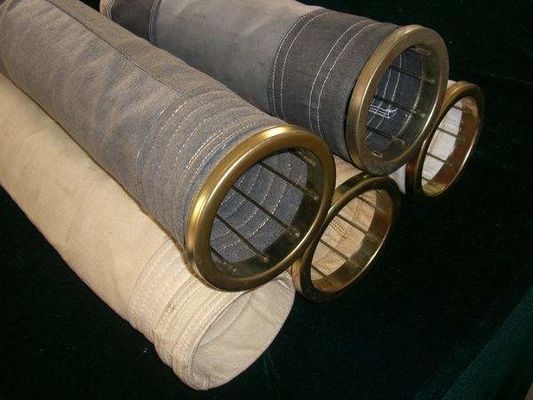

PPS filter bag for Coal Fired Boiler
Description:
Material:PPS Needle Felt
Weight: 450GSM~550GSM
Diameter: Φ 120,Φ 130, Φ 135,Φ 138, Φ 152, Φ 158 etc. We make it as your requirements.
Length: 1000mm~8000mm. We make is as your requirements.
PPS POLYPHENYLENE CHARACHERISTICS
Excellent Chemical resistance to both mineral and organic acids and alkalis.
Extremely stable,high density fiter bag fabric.
Good Flame retardancy.
Excellent resistance to hydrolysis.
Suited for high humidity and chemical attack processes where emission standard are tight.
Specification:
| Fibre |
PPS |
| Scrim |
PPS |
| Weight(G/M2) |
450~550 |
| Thickness (mm) |
2.2 |
| Width (mm) |
≤ 2.2 |
| Length |
50m/roll |
| Finish treatment |
Singeing, Calendering,PPS dipping treatment. |
| Air permeability (m3/m2/min): |
11.2 |
| Tensile strength (N/5× 20cm) |
Warp:>1020 Weft:>1340 |
| Tensile elongation (%): |
Warp:<21 Weft:<34 |
| Temperature (ºC): |
Continue: 150 Instant: 192 |
| Anti-acid |
Excellent |
| Anti-alkali |
Excellent |
| Anti-abrasion |
Excellent |
| Hydrolytic stability |
Excellent |
Applications:

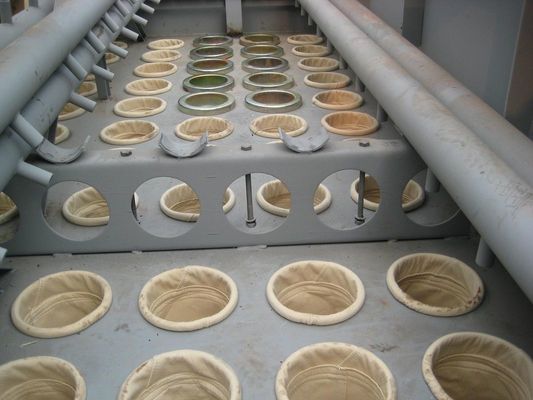

Coal - Fired Boilers bag houses Calciners / Catalysts.
Municipal Solid Waste Boilers and Waste incinerator.
Electric power plant Electrolysis and other Specialty membranes.
Waste to energy Iron and non ferrous Metal Industry.
Making method:
Our bags are sewn with 3 - needle chain stitch to ensure seam integrity. Top constructions consist of snap band, flange top, ring top, soft cuffs or raw edge. Bottom removal bags are constructed with a raw top or soft cuff. Top and bottom removal bag bottoms have disc bottoms that are sewn using an overlock (surge) stitch or lock stitch. A wear strip or custom skirts is attached to the bottom portion of the bag to prevent premature wear from bag-to-bag and bag-to-cage abrasion.
Packaging & Delivery:
Competitive Advantages:
1. 100% custom pass guaranteed.
2. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
3. Flexible and Untraceable payment terms.
4. Good after-sale service.
5. We offer high quality products at competitive price in quick delivery.
