High Performance PTFE Filter Bag Pulse Jet Fabric Filter Bags Customized Size
  • High Performance PTFE Filter Bag Pulse Jet Fabric Filter Bags Customized Size
  • High Performance PTFE Filter Bag Pulse Jet Fabric Filter Bags Customized Size
  • High Performance PTFE Filter Bag Pulse Jet Fabric Filter Bags Customized Size
  • High Performance PTFE Filter Bag Pulse Jet Fabric Filter Bags Customized Size

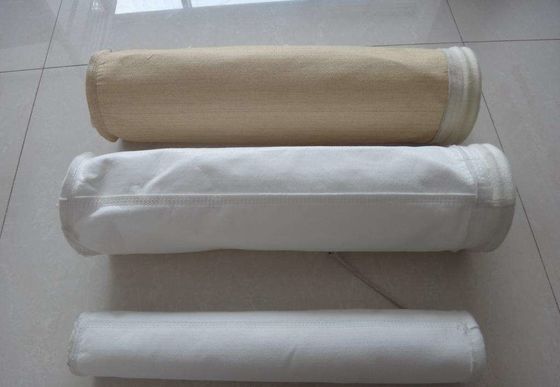

High Performance PTFE Filter Bag Pulse Jet Fabric Filter Bags Customized Size

Place of Origin jiangsu
Brand Name Filter
Model Number PTFE filter bag
Product Details
Product Name:
PTFE(PTFE) Filter Bag
Usage:
Dust Filter
Type:
Pocket Filter, PTFE Filter
Weight:
750GSM
Size:
Customized
Material Of Bag:
PTFE
Material:
PTFE,Fiberglass / P84 / PTFE / Nomex
Application:
Industry Dust Collector,dust Filter Bag For Cemet Factory And So On,baghouse Dust Collector
Shape:
Round Or Customized
Micron Rating:
Non Woven Filter Cloth
Working Temperature:
280℃
Thickness:
1.8-2.8mm
Bag Top Type:
Carbon Steel Snapband,SS304 Snapabnd
Temperature:
130-300 Deg.
Samples:
Available
High Light:

pps filter bags

,

polythene dust extractor bags

Payment & Shipping Terms
Minimum Order Quantity
50pcs
Price
Negotiable
Packaging Details
Carton or Woven Bag
Delivery Time
3~15 days
Payment Terms
L/C, D/A, D/P, T/T, Western Union
Supply Ability
Supply 10000pcs filter bags per month
Product Description

PTFE(Teflon) Filter Bag



Description:



Material:PTFE filter cloth
Weight: 750GSM
Diameter: Φ 120,Φ 130, Φ 135,Φ 138, Φ 152, Φ 158 etc. We make it as your requirements.
Length: 1000mm~8000mm. We make is as your requirements.



Specification:



Fibre PTFE
Scrim PTFE
Weight(G/M2) 750
Thickness (mm) 1.27
Width (mm) ≤ 2.2
Length 50m/roll
Finish treatment Singeing,Calendering and PTFE dipping treatment.
Air permeability (m3/m2/min): 5.47
Tensile strength (N/5× 20cm) Warp:>908 Weft:>1026
Tensile elongation (%): Warp:<35 Weft:<50
Temperature (ºC): Continue: 250 Instant: 280
Application Mainly used in Combustion,Coal burning boiler,Waster incineration,Carbon black producing.





Product Feature:



1. Be composed of 100% pure PTFE.

2. It can operate at 240oC continuously.

3. Acid and alkali resistance,corrosion resistance and have strong chemical stability(0-14PH)

4. It can be used under high humidity environment.

5. Low shrinkage rate even if under high temperature.





Application:



1. Asphalt mixing plant.

2. Biomass power stations.

3. Chemical and pharmaceutical industry.

4. High temperature dedusting.

5. Coal-fired power stations.

6. Food industry.

7.Non-ferrous metal and steel production.

8.Cement,gypsum and lime industry.

9.Thermal waste treatment.



Making method:



Our bags are sewn with 3 - needle chain stitch to ensure seam integrity. Top constructions consist of snap band, flange top, ring top, soft cuffs or raw edge. Bottom removal bags are constructed with a raw top or soft cuff. Top and bottom removal bag bottoms have disc bottoms that are sewn using an overlock (surge) stitch or lock stitch. A wear strip or custom skirts is attached to the bottom portion of the bag to prevent premature wear from bag-to-bag and bag-to-cage abrasion.



Packaging & Delivery:



High Performance PTFE Filter Bag Pulse Jet Fabric Filter Bags Customized Size 0



Competitive Advantages:



1. 100% custom pass guaranteed.
2. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
3. Flexible and Untraceable payment terms.
4. Good after-sale service.

5. We offer high quality products at competitive price in quick delivery.



Shipping Details:



SHIPPING

(Normally arrive port time in working days)

Destination Express/Courier SHIP BY SEA SHIP BY AIR SHIP BY EMS
DHL/FEDEX/UPS/TNT
North America 3~7 days 15~24 days 5~7 days 10~12 days
South America 3~7 days 15~25 days 5~7 days 10~12 days
European Countries 3~7 days 20~30 days 5~7 days 10~12 days
Africa Countries 3~7 days 40~50 days 5~7 days 10~12 days
The Middle East 3~7 days 15~25 days 5~7 days 10~12 days
Australia 3~7 days 10~15 days 5~7 days 10~12 days
