Product Details:

Place of Origin: jiangsu
Brand Name: Filter
Model Number: fibreglass filter bag

Payment & Shipping Terms:

Minimum Order Quantity: 50pcs
Price: Negotiable
Packaging Details: Carton or Woven Bag
Delivery Time: 3~15 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: Supply 10000pcs filter bags per month
Contact Now
Detailed Product Description
Product Name: Dust Collector Filter Bag Usage: Industry Dust Collector
Type: Pocket Filter, All Needle Felt Filter Size: Customized
Usage: Dust Filter,Air Filter,steel,carbon Black Application: Industry Dust Collector,Cement Plant,dust Filter Bag For Cemet Factory And So On,Dust Filter
Shape: Long Tube With Steel Ring,Round Or Customized Working Temperature: 80-350deg
Thickness: 1.8-2.8mm Temperature: 130-300 Deg.
Sample: Free Feature: High Temperature Resistance,Large Dust,High Quality,High Efficiency,Dust Collection
Style: Needle Felt Filter Bag Weight: 300 To 900gsm
Oem: Yes

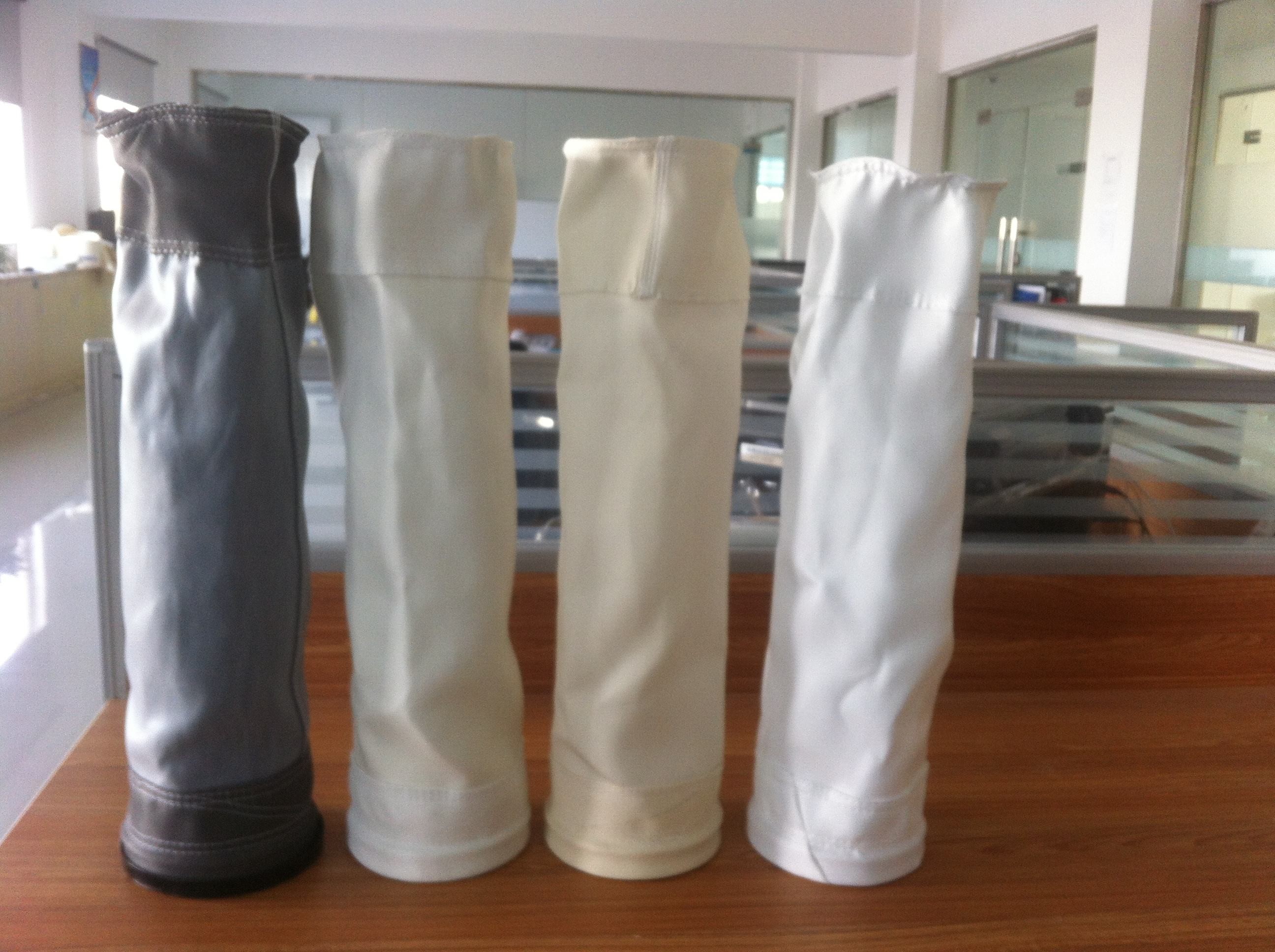

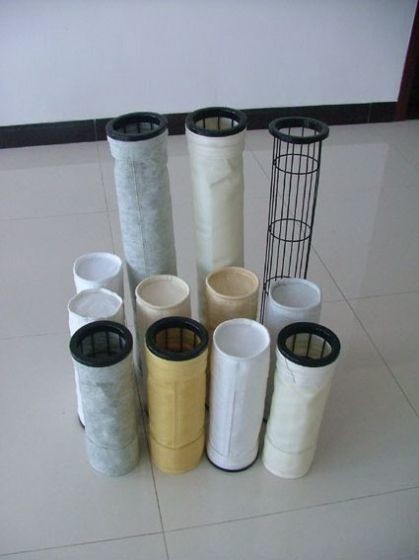

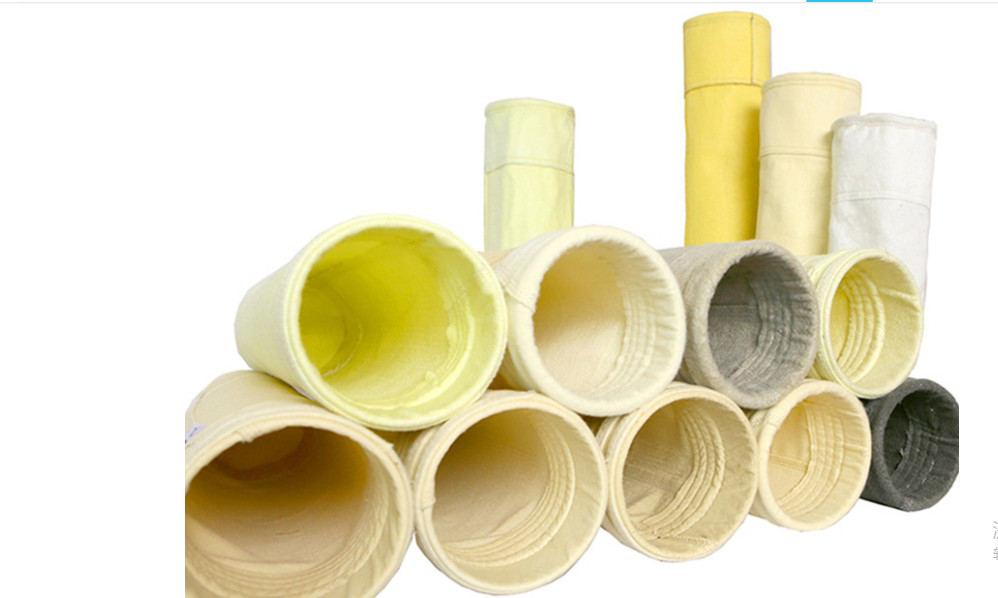

Dust Collector filter bag

Description:



Material: All Needle Felt
Weight: 450GSM~550GSM
Diameter: Φ 130, Φ 138, Φ 152, Φ 158 etc. We make it as your requirements.
Length: 1000mm~8000mm. We make is as your requirements.
Making method: Our bags are sewn with 3 - needle chain stitch to ensure seam integrity. Top constructions consist of snap band, flange top, ring top, soft cuffs or raw edge. Bottom removal bags are constructed with a raw top or soft cuff. Top and bottom removal bag bottoms have disc bottoms that are sewn using an overlock (surge) stitch or lock stitch. A wear strip or custom skirts is attached to the bottom portion of the bag to prevent premature wear from bag-to-bag and bag-to-cage abrasion.



Specification:



Raw materials
of the filter material
Temperature Property of the filter material
& the suitable industrial conditions
Application field and
industrial condition
Polypropylene (PP) 900C Suitable for the condition with continuous working temperature less than 900C & short time temperature less than 1000C. The oxidation resistance of the material is ordinary. Suitable PH range is 1to 14. The resistance of hydrolysis of the material is good. Suitable for the dust collection of sugar production, chemical fertilizer plants, electroplating, pesticide plant, etc
polyacrylonitrile(AC) 1100C

Suitable for the condition with continuous working temperature less than 1100C & short time temperature less than 1150C. The oxidation resistance of the material is ordinary. Suitable PH range is 6 to 13.

Relative humidity<5%

Suitable for the dust collection of detergent production, pulverized coal plant, etc
homopolyacrylonitrile(DT) 1250C

Suitable for the condition with continuous working temperature less than 1250C & short time temperature less than 1400C. The oxidation resistance of the material is ordinary. Suitable PH range is 3 to 11

Relative humidity<30%

Suitable for the dust collection of detergent production, garbage incineration, asphalt, spray dryer, coal mill, power plant, etc.
Polyester (PE) 1500C

Suitable for the condition with continuous working temperature less than 1300C & short time temperature less than 1500C. The oxidation resistance of the material is good.

The acid-base resistance is ordinary. Suitable PH range is 4 to 12.

Relative humidity<4%

The expected lifetime depends on the moisture content of the flue gas when the working temperature is high.

Suitable for the dust collection of mine, lime cement production, raw cement, grinding machine, packaging and other process, continuous casting and sintering, ironmaking processes of Iron and steel industry , alumina conveying, electrolytic aluminum production, non-ferrous metal smelting plant, wood processing, food processing, pharmaceutical and other industries

polyphenylene sulfide

(PPS)

1600C

Suitable for the condition with continuous working temperature less than 1600C & short time temperature less than 2000C. The oxidation resistance of the material is not good. The resistance to acid-base is good. Suitable PH range is 1 to 14

Relative humidity>30%

Suitable for the dust collection of flue gas of coal-fired boilers, garbage incineration, metal smelting, chemical industry , etc.
polyamide (NO) 2000C

Suitable for the condition with continuous working temperature less than 2040C & short time temperature less than 2400C. The oxidation resistance of the material is ordinary.

PH range is 4 to 12.

Relative humidity<10%

The performance of the material depends on the moisture content of the flue gas when the working temperature is high.

Suitable for the dust collection of flue gas of asphalt-mixing, non-ferrous metal smelting, ceramics, glass, kiln head of cement industry (grate cooler), steel blast, etc.
polyimide(PI/P84) 2200C

Suitable for the condition with continuous working temperature less than 2200C & short time temperature less than 2600C. The oxidation resistance of the material is ordinary.

PH range is 3 to 13.

Relative humidity<25%

Suitable for the dust collection of the corrosive flue gas of Chemical plant, metal melting, garbage incineration, cement preheater and coal boiler, etc.
polyfluortetraethylene(PTFE) 2500C

Suitable for the condition with continuous working temperature less than 2500C & short time temperature less than 2800C. The material have good resistance for all the chemical corrosion

PH range is 1 to 14

Relative humidity>30%

The material has good ash removal performance.

Suitable for the dust collection of the highly temperature and high corrosive flue gas of Chemical industry, coal boiler, garbage incineration, non-ferrous metal smelting plant, etc.
Fiberglass (FG) 2600C

Suitable for the condition with continuous working temperature less than 2600C & short time temperature less than 2800C. The oxidation resistance of the material is ordinary. Suitable PH range is 4 to 9

Relative humidity55%

Suitable for the dust collection of the highly temperature flue gas of, Cement production, coal boiler, garbage incineration, steelmaking furnace, blast furnace gas production, the ferroalloy furnace, etc



Product Feature:



1.High temperature resistance.
2.Good anti-acid/anti-alkali capacity.
3.Excellent anti-abrasion capacity.
4.High filtration efficiency.
5.Good raw material, competitive price.
6.Fast delivery.
7.Size can be customized.



Application:



1. Steel Plant.

2. Cement Plant.

3. Combustion.

4. Coal burning boiler.

5. Waster incineration.

6. Carbon black producing.



Making method:



Our bags are sewn with 3 - needle chain stitch to ensure seam integrity. Top constructions consist of snap band, flange top, ring top, soft cuffs,antiskid rop or raw edge. Bottom removal bags are constructed with a raw top or soft cuff. Top and bottom removal bag bottoms have disc bottoms that are sewn using an overlock (surge) stitch or lock stitch.Usually it have 7 supporting rings.
