|Product Name:||Nomex(Aramid) Filter Bag||Applicable Industrie:||Steel Plant,Power Plant,Cement Plant,Mining Plant Etc.|
|Usage:||Industry Dust Collector||Type:||Pocket Filter, Aramid Filter|

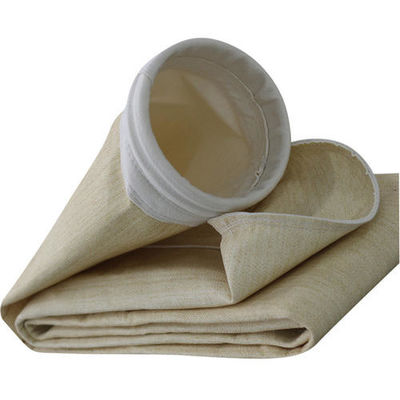

Nomex(Aramid) Filter Bag
Material:Nomex(Aramid) Needle Felt
Diameter: Φ 120,Φ 130, Φ 135,Φ 138, Φ 152, Φ 158 etc. We make it as your requirements.
Length: 1000mm~8000mm. We make is as your requirements.
|Width (mm)||≤ 2.2|
|Finish treatment||Singeing, Calendering, Heat-set|
|Air permeability (L/m2/s):||120~200|
|Tensile strength (N/5× 20cm)||Warp:>1000 Weft:>1200|
|Tensile elongation (%):||Warp:<50 Weft:<55|
|Temperature (ºC):||Continue: 204 Instant: 240|
1.High temperature resistance.
2.Good anti-acid/anti-alkali capacity.
3.Excellent anti-abrasion capacity.
4.High filtration efficiency.
5.Good raw material, competitive price.
7.Size can be customized.
1. Asphalt mixing plant.
2. Biomass power stations.
3. Chemical and pharmaceutical industry.
4. High temperature dedusting.
5. Coal-fired power stations.
6. Food industry.
7.Non-ferrous metal and steel production.
8.Cement,gypsum and lime industry.
9.Thermal waste treatment.

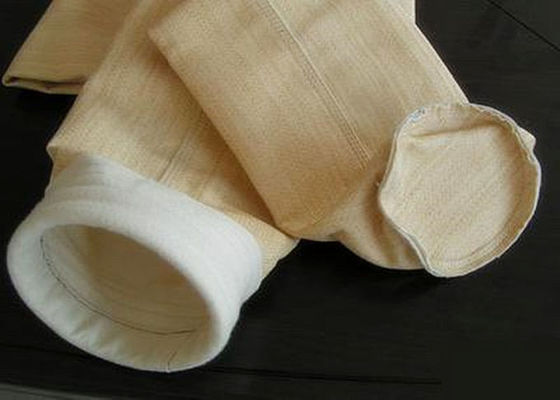

Our bags are sewn with 3 - needle chain stitch to ensure seam integrity. Top constructions consist of snap band, flange top, ring top, soft cuffs or raw edge. Bottom removal bags are constructed with a raw top or soft cuff. Top and bottom removal bag bottoms have disc bottoms that are sewn using an overlock (surge) stitch or lock stitch. A wear strip or custom skirts is attached to the bottom portion of the bag to prevent premature wear from bag-to-bag and bag-to-cage abrasion.
Packaging & Delivery:
1. 100% custom pass guaranteed.
2. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
3. Flexible and Untraceable payment terms.
4. Good after-sale service.
5. We offer high quality products at competitive price in quick delivery.
(Normally arrive port time in working days)
