Dust Collector Filter Bags
>
|
|
| Place of Origin | jiangsu |
| Brand Name | Filter |
| Model Number | filter bag |

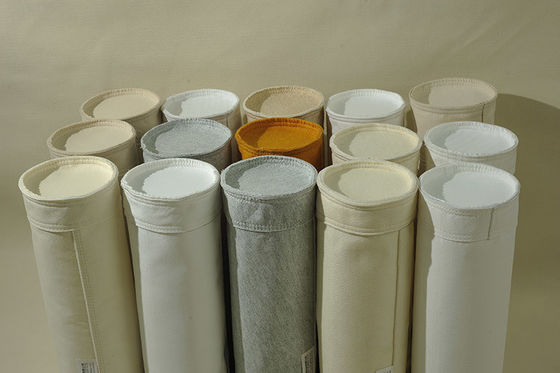

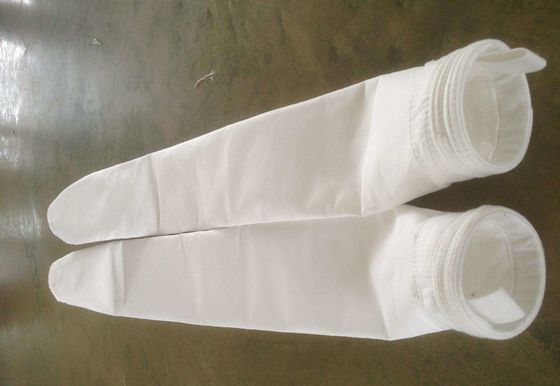

Polyester with PTFE membrane Filter Bag
Description:
Material: Polyester with PTFE membrane Needle Felt
Weight: 450GSM~550GSM
Diameter: Φ 120,Φ 130, Φ 135,Φ 138, Φ 152, Φ 158 etc. We make it as your requirements.
Length: 1000mm~8000mm. We make is as your requirements.
Technical Parameters:
| Fibre | Polyester |
| Scrim | Polyester |
| Weight(G/M2) | 450~550 |
| Thickness (mm) | 2.0 |
| Width (mm) | ≤ 2.2 |
| Length | 50m/roll |
| Finish treatment | Singeing, Calendering, Heat-set,Overlaying PTFE membrane. |
| Air permeability (m3/m2/min): | 1.68 |
| Tensile strength (N/5× 20cm) | Warp:>900 Weft:>1200 |
| Tensile elongation (%): | Warp:<35 Weft:<50 |
| Temperature (ºC): | Continue: 120 Instant: 150 |
| Anti-acid | Excellent |
| Anti-alkali | Fair |
| Anti-abrasion | Excellent |
| Hydrolytic stability | Fair |
| Application | Mainly used in food and beverage industry,pharmaceutical industry,non-ferrous metallurgy,chemcial plant,building section and mining industry etc. |
Production Features:
1.Various material: Polyester(PE), Polypropylen(PP), Aramid, P84, Acrylic, PPS, Fiberglass, PTFE,Nomex,FMS etc.
2.Strong intensity.
3.Excellent anti-abrasion,good finishing treatment.
4.Good raw material, competitive price.
5.High filtration efficiency .
6.Fast delivery.
7.Size can be customized.
8.Factory manufacturer could contol quality and price.
9.Strict quality inspection and contol.
10.Professional designer team to match with your operating condition.
Application:
1. Food and Beverage Industry.
2. Pharmaceutical Industry.
3. Non-ferrous Metallurgy.
4. Chemcial Plant.
5. Building Section and Mining Industry.
6. Cement Plant.
7. Power Plant.
8. Steel Plant.
Making method:
Our bags are sewn with 3 - needle chain stitch to ensure seam integrity. Top constructions consist of snap band, flange top, ring top, soft cuffs or raw edge. Bottom removal bags are constructed with a raw top or soft cuff. Top and bottom removal bag bottoms have disc bottoms that are sewn using an overlock (surge) stitch or lock stitch. A wear strip or custom skirts is attached to the bottom portion of the bag to prevent premature wear from bag-to-bag and bag-to-cage abrasion.
Packaging & Delivery:
Competitive Advantages:
1. 100% custom pass guaranteed.
2. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
3. Flexible and Untraceable payment terms.
4. Good after-sale service.
5. We offer high quality products at competitive price in quick delivery.
