FMS Fibreglass Dust Collector Filter Bags / Asphalt Mixing Plant Cyclone Filter Bags

I'm Online Chat Now

FMS Fibreglass Dust Collector Filter Bags / Asphalt Mixing Plant Cyclone Filter Bags

China FMS Fibreglass Dust Collector Filter Bags / Asphalt Mixing Plant Cyclone Filter Bags supplier
FMS Fibreglass Dust Collector Filter Bags / Asphalt Mixing Plant Cyclone Filter Bags supplier FMS Fibreglass Dust Collector Filter Bags / Asphalt Mixing Plant Cyclone Filter Bags supplier FMS Fibreglass Dust Collector Filter Bags / Asphalt Mixing Plant Cyclone Filter Bags supplier

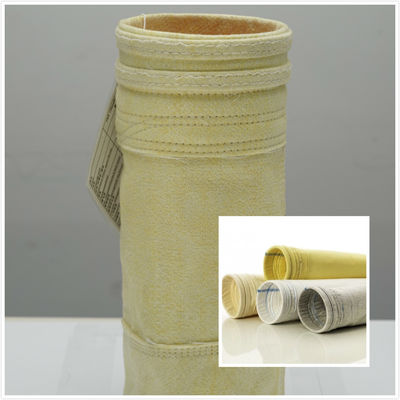

Large Image :  FMS Fibreglass Dust Collector Filter Bags / Asphalt Mixing Plant Cyclone Filter Bags

Product Details:

Place of Origin: jiangsu
Brand Name: Filter
Model Number: filter bag

Payment & Shipping Terms:

Minimum Order Quantity: 50pcs
Price: Negotiable
Packaging Details: Carton or Woven Bag
Delivery Time: 3~15 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: Supply 10000pcs filter bags per month
Contact Now
Detailed Product Description
Product Name: FMS Fibreglass Filter Bag Applicable Industrie: Steel Plant,Non-ferrous Melting,Chemical,Carbon Black And Building Metails.
Usage: Dust Filter Type: Pocket Filter, Medium Alkali Fibreglass Filter
Weight: 800GSM Size: Customized
Usage: Dust Filter,Air Filter,Industry Dust Collector Material Of Bag: Fiberglass
Shape: Round/Flat,can Be Customized Working Temperature: 130 - 260 Degree
Warranty: 3 Years From The Date Of Load On Board Item: Filter Bags For Baghouse
Thickness: 1.9-2.5 Mm Feature: High Efficiency,Alkaline Resistant,Large Dust Collection,High Quality

Product Name:FMS Fibreglass Filter Bag



Description:



Material: FMS filter cloth
Weight: 800GSM
Diameter: Φ 120,Φ 130, Φ 135,Φ 138, Φ 152, Φ 158 etc. We make it as your requirements.
Length: 1000mm~8000mm. We make is as your requirements.



Technical Parameters:



Fibre Fibreglass
Scrim Fibreglass
Weight(G/M2) 800
Thickness (mm) 2.2
Width (mm) ≤ 2.2
Length 50m/roll
Finish treatment PTFE Dipping treatment and Heat-set.
Air permeability (L/m2/S): 150~300
Tensile strength (N/5× 20cm) Warp:>1700 Weft:>1800
Tensile elongation (%): Warp:<10 Weft:<10
Temperature (ºC): Continue: 260 Instant: 300
Anti-acid Excellent
Anti-alkali Fair
Anti-abrasion Excellent
Hydrolytic stability Fair
Application Mainly used in Steel Plant,Non-ferrous melting,Chemical,Carbon black and Building metails.



Prodction Features:



1.High efficient filtration level.

2.Depth type filtration.

3.Wide range of chemically compatible media.

4.High temperature resistance.

5.High flow efficiency.

6.High air to cloth ratio.

7.Various coatings are available.



Making method:



Our bags are sewn with 3 - needle chain stitch to ensure seam integrity. Top constructions consist of snap band, flange top, ring top, soft cuffs or raw edge. Bottom removal bags are constructed with a raw top or soft cuff. Top and bottom removal bag bottoms have disc bottoms that are sewn using an overlock (surge) stitch or lock stitch. A wear strip or custom skirts is attached to the bottom portion of the bag to prevent premature wear from bag-to-bag and bag-to-cage abrasion.



Application:



1. Steel Plant.

2. Non-ferrous melting.

3. Chemical.

4. Carbon black and Building metails.

5. Cement Plant.



Packaging & Delivery:



FMS Fibreglass Dust Collector Filter Bags / Asphalt Mixing Plant Cyclone Filter Bags



Competitive Advantages:



1. 100% custom pass guaranteed.

2. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.

3. Flexible and Untraceable payment terms.

4. Good after-sale service.

5. We offer high quality products at competitive price in quick delivery.



Shipping Details:



SHIPPING

(Normally arrive port time in working days)

Destination Express/Courier SHIP BY SEA SHIP BY AIR SHIP BY EMS
DHL/FEDEX/UPS/TNT
North America 3~7 days 15~24 days 5~7 days 10~12 days
South America 3~7 days 15~25 days 5~7 days 10~12 days
European Countries 3~7 days 20~30 days 5~7 days 10~12 days
Africa Countries 3~7 days 40~50 days 5~7 days 10~12 days
The Middle East 3~7 days 15~25 days 5~7 days 10~12 days
Australia 3~7 days 10~15 days 5~7 days 10~12 days
