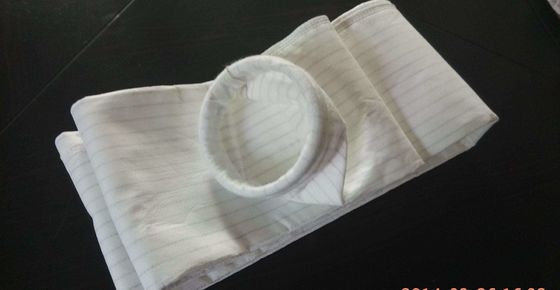

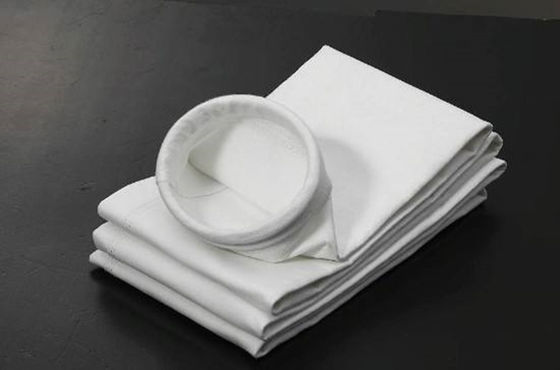

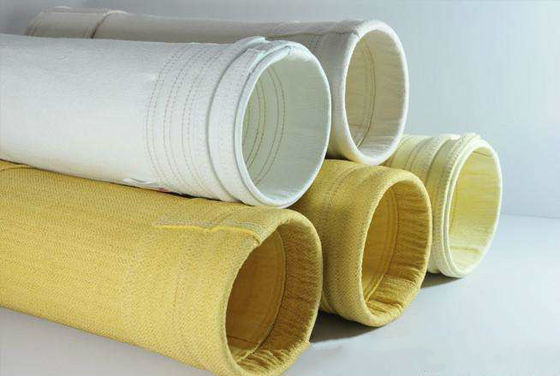

Polyester Filter Bag
Description:
Material: Polyester Needle Felt
Weight: 450GSM~550GSM
Diameter: Φ 120,Φ 130, Φ 135,Φ 138, Φ 152, Φ 158 etc. We make it as your requirements.
Length: 1000mm~8000mm. We make is as your requirements.
Technical Parameters:
| Fibre |
Polyester |
| Scrim |
Polyester |
| Weight(G/M2) |
450~550 |
| Thickness (mm) |
2.0 |
| Width (mm) |
≤ 2.2 |
| Length |
50m/roll |
| Finish treatment |
Singeing, Calendering, Heat-set |
| Air permeability (L/m2/S): |
120 |
| Tensile strength (N/5× 20cm) |
Warp:>1100 Weft:>1350 |
| Tensile elongation (%): |
Warp:<25 Weft:<45 |
| Temperature (ºC): |
Continue: 120 Instant: 150 |
| Anti-acid |
Excellent |
| Anti-alkali |
Fair |
| Anti-abrasion |
Excellent |
| Hydrolytic stability |
Fair |
| Application |
Mainly used in food and beverage industry,pharmaceutical industry,non-ferrous metallurgy,chemcial plant,building section and mining industry etc.
|
Production Features:
1. High efficient filtration level.
2. Depth type filtration.
3. Wide range of chemically compatible media.
4. High temperature resistance.
5. High flow efficiency.
6. High air to cloth ratio.
7. Various coatings are available.
Application:
1. Asphalt mixing plants.
2. Biomass power stations.
3. Chemical and pharmaceutical industry.
4. High temperature dedusting.
5. Coal-fired power stations.
6. Food industry.
7. Non-ferrous metal and steel production.
8. Cement, gypsum and lime industry.
9. Thermal waste treatment.
Making method:
Our bags are sewn with 3 - needle chain stitch to ensure seam integrity. Top constructions consist of snap band, flange top, ring top, soft cuffs or raw edge. Bottom removal bags are constructed with a raw top or soft cuff. Top and bottom removal bag bottoms have disc bottoms that are sewn using an overlock (surge) stitch or lock stitch. A wear strip or custom skirts is attached to the bottom portion of the bag to prevent premature wear from bag-to-bag and bag-to-cage abrasion.
Packaging & Delivery
Competitive Advantages:
1. 100% custom pass guaranteed.
2. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
3. Flexible and Untraceable payment terms.
4. Good after-sale service.
5. We offer high quality products at competitive price in quick delivery.
