|Product Name:||Nano Fibre Filter Cartridge||Type:||Pleated Filter Cartridge|
pleated filter cartridge,
industrial air filter cartridges

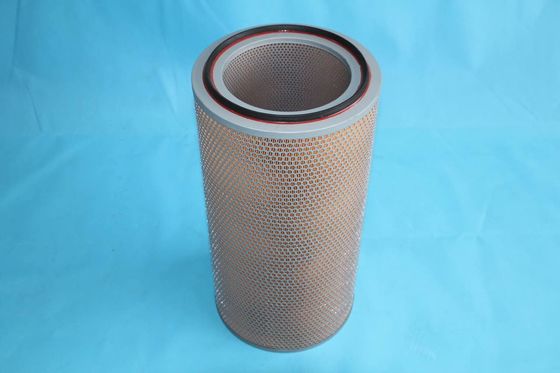

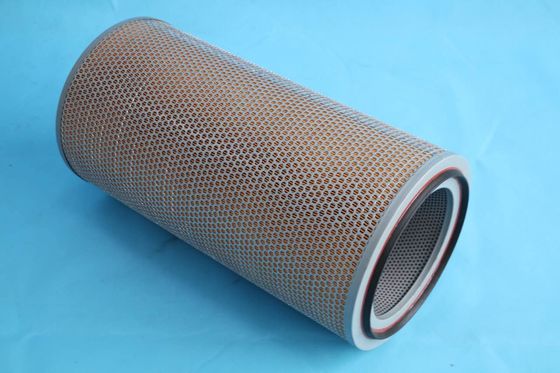

Nano Flame Retardant Filter Cartridge
1) Imported long fiber polyester filter media,fiber interwoven,evenly distributed.
2) Easy to clean.
3)Durable and rigid material,washable greater withstanding performance to pulse jet than traditional materials.
4)Electrochemical plate top and bottom,no rust perforated zinc galvanized metal inner core allows good airflow
5) Rubber gasket ensure airtight sealing
6) Applicable temperature:93~135ºC
1) Construction: Round,Cone,Oval are all available
2) Filter media: Spun bonded polyester
3) Air weight of filter media: 220g/m2 240g/m2 260g/m2
4) Coating: Flame retardant coating
5) Size: Standard OD324*ID213*H660mm,customized size are available here
6) Filter Area: 9.4~15(standard)
Optional Filter Media:
1) Spunbonded polyester
2) Polyester + Oil and water repellent
3) Polyester + PTFE Membrane (Coated by glue & Coated by heating)
4) Polyester + Anti-static (Aluminized antistatic & Polymer Antistatic )
5) Polyester + Flame retardant
6) Polyester + Dual anti-treatment (Anti-static+Flame retardant, Oil and water repellent+ Anti-static, PTFE Membrane+ Anti-static)
We will choose the most suitable filter media according to customers' requirement.
End Casp & Inner Core: Electro-galvanized to prevent corrosion. Stainless steel is also available.
Gasket: Professional sealing obturator elastic neoprene.
Features of dust cartridge:
1) Operating temperature ≤ 135 ° C.
2) Greatly increase the effective filtration area.
3) Ensure a low steady differential pressure, improve the circulation of air flow.
4) Small filter cartridge element, easy to install.
5) Especially suitable for large dust concentration industry.
|Structure||Cylindrical Filter Cartridge|
|Dimension||(OD)324*(ID)213*(H)660mm Sizes are according to your requirements.|
|End Caps||Galvanized sheet|
/ Outer Line
|Galvanized diamond mesh|
|Construction||Open/Closed with bolt hole|
NO MOQ . But advice full container to save cost.
20GP FCL:306 sets
40GP FCL:612 sets
40HQ FCL:714 sets
|Lead Time||10~15 days|
|Payment||T/T ; West Union ; Paypal|
Widely used in filtration of fine dust type in plastic,spray powder,sand blasting,pigment,and wood industries.
1. 100% custom pass guaranteed.
2. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
3. Flexible and Untraceable payment terms.
4. Good after-sale service.
5. We offer high quality products at competitive price in quick delivery.
(Normally arrive port time in working days)
|Destination||Express/Courier||SHIP BY SEA||SHIP BY AIR||SHIP BY EMS|
|North America||3~7 days||15~24 days||5~7 days||10~12 days|
|South America||3~7 days||15~25 days||5~7 days||10~12 days|
|European Countries||3~7 days||20~30 days||5~7 days||10~12 days|
|Africa Countries||3~7 days||40~50 days||5~7 days||10~12 days|
|The Middle East||3~7 days||15~25 days||5~7 days||10~12 days|
|Australia||3~7 days||10~15 days||5~7 days||10~12 days|
